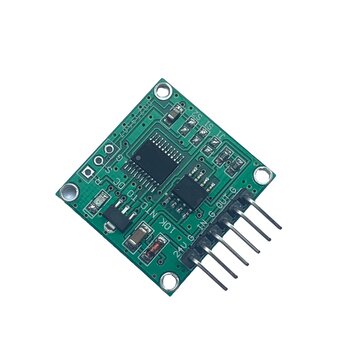

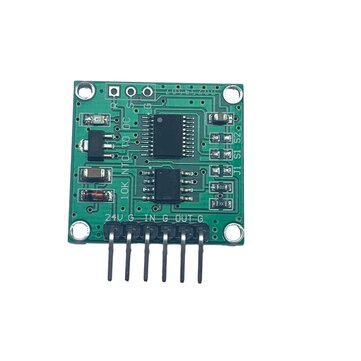

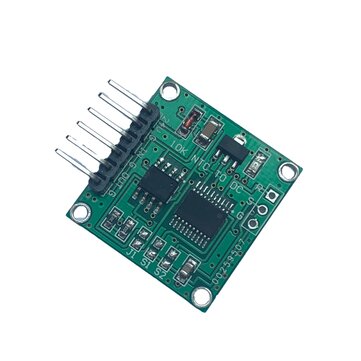

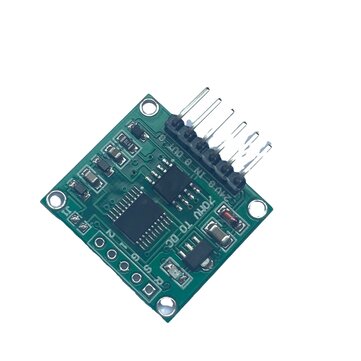

0-5V to 4-20MA Voltage to Current Board Linear Conversion Transmitter Module

Module parameters: ? 1. Working voltage: 9V ~ 24V 2. Input voltage: 0.00V ??? 5.00V / 0.00V ??? 10.00V 3. Output current: 4.00MA ??? 20.00MA / 0.00mA???20.00mA 4. Input mode: J1 pad on the circuit board: open circuit (0???5V); short circuit (0???10V) default is open circuit. 5. Output mode: J2 pad on the circuit board: open circuit (output 4.00mA ~ 20.00mA); short circuit (output 0.00mA ~ 20.00mA), the default is open circuit. 6. Control method: input voltage is converted to corresponding current 7. Application range: voltage signal to current signal; remote data acquisition and control equipment; 8. Size: (length) 26mm * (width) 25mm * (height) 7mm 9. Module interface: 24V: Power supply positive port (9V ~ 24V). G: Power ground interface. IN: Signal input interface (0.00V ??? 5.00V / 0.00V ??? 10.00V) G: Power ground interface. OUT: Signal output interface (4.00MA ??? 20.00MA / 0.00mA???20.00mA) G: Power ground interface. Note: When the output is 0.00V ~ 10.00V, the power supply voltage must be 15V.
Package includes:
1 x?0-5V to 4-20MA Voltage to Current Board
