10 Pcs Mini360 3a Dc Voltage Step-down Power Converter Step-down

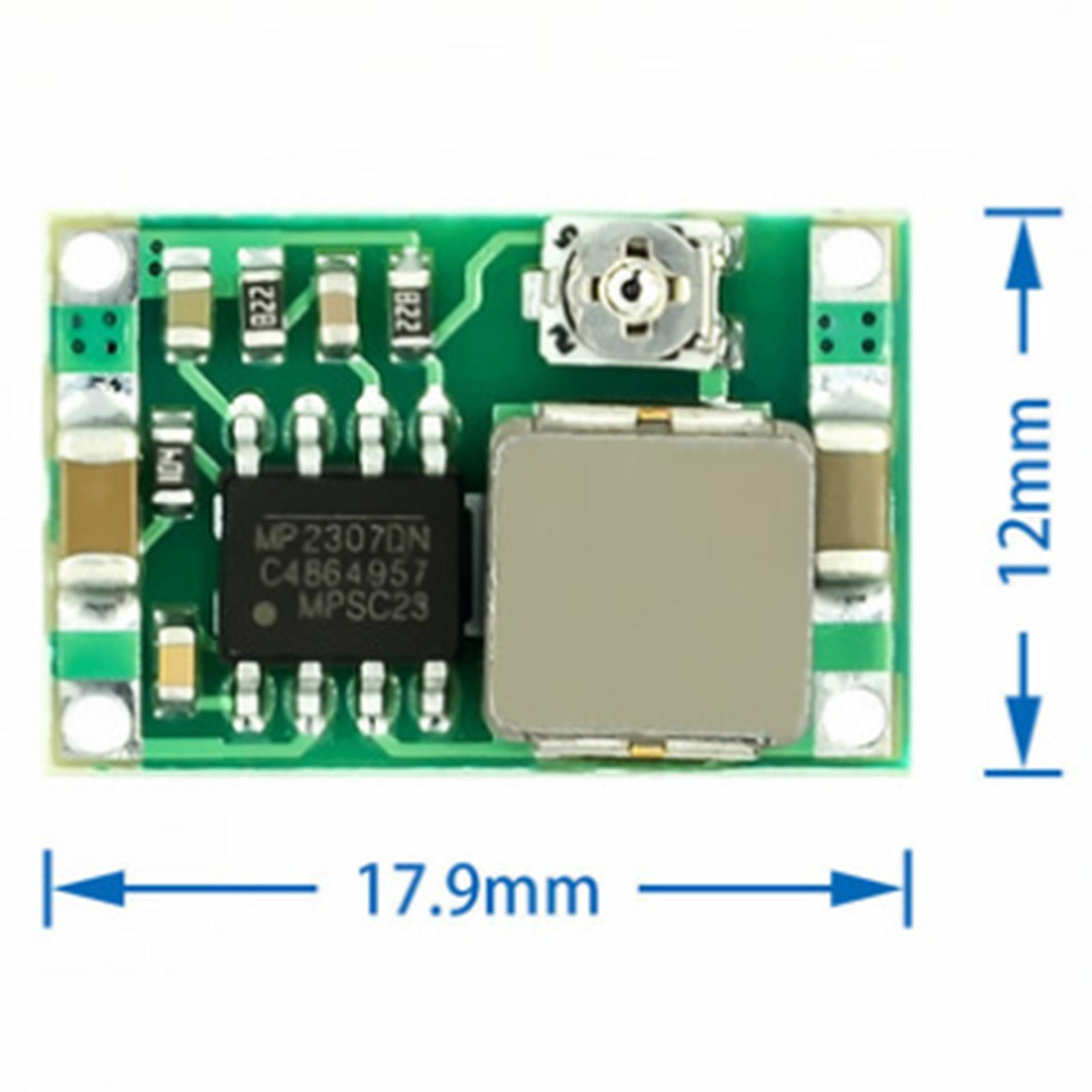

Small volume DC-DC synchronous rectifier step-down moduleApplication areas:HM DC-DC step-down module (support 2S~5S polymer lithium battery), DIY mobile power supply, vehicle power supply, communication equipment power supply, various occasions with demanding requirements on volume and weight.Features: It uses one-piece power inductor and synchronous rectification control chip, which is small in size and high in efficiencyModel Name:Mini-360 (ultra-small DC-DC synchronous rectifier step-down module)Module natureNon-isolated buckRectification methodSynchronous rectificationInput voltage:4.75V-23VThe output voltage:1.0V-17VOutput current:Peak 3A, long time 1.8AConversion efficiency:96% (high)operating frequency:340KHzOutput ripple:30mV (when no load)Load Regulation:0.5%Voltage regulation rate:2.5%Operating temperature:-40 Celsius to +85 CelsiusPeripheral size:17 x 11 x 3.8 (length x width x height) (mm)Colour:greenMaterial:MetalPackage Contents:10 * Mini360 model airplane power supply step-down moduleOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
