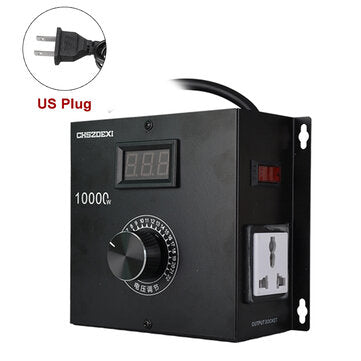

10000W SCR Electronic Voltage Regulator Temperature Motor Fan Speed Controller (PLUG: 110VUSPLUG)

SELECTED OPTION:
PLUG: 110VUSPLUG

Specifications:

Name	SCR electronic voltage regulator
Material	iron
Color	black
Item weight	0.5kg
Model	DXT-10000W (knob style)
Input voltage	AC220V
Output voltage	0-220V adjustable (voltmeter does not work when the output voltage is lower than 5V)
Limit power	5000W(long-term load: 3500W-4000W)
Voltage regulation range	0-220V stepless adjustable (with load conditions) step-down to 0V, boost up to 10V
Rated current	18A
Limit current	25A
Features	Zero lag, zero delay, with wave peak voltage absorption circuit effective protection of high-power thyristor, anti-surge, anti-spike, RC absorption multiple protection
SCR Model	STMicroelectronics SCR, BTA60-800B

Features: - Mute operation, energy saving, stable noise prevention, stepless speed regulation - Mini size, portable and lightweight, strong power, easy to use. - High power regulator, stepless regulation, help adjust speed, temperature, voltage and light. - Adopt iron outshell design, solid and firm, wear resistance and with fine durability. - Separate switch control, freely control the input power and cut off power. - Adopt multi functional industrial sockets, thicken copper part design, with fine contact and safety. - Humanized installation hole designed for easy installation. - Suitable for electrical components, such as: electric stove, water heater, heat transfer lamp dimming, small motor electric soldering iron and etc..
Package Includes: 1 x Regulator
Notice: 1.Please allow 1-2cm error due to manual measurement.Please make sure you do not mind before you bid. 2.The colors may have different as the difference display,please understand.
More Details:
