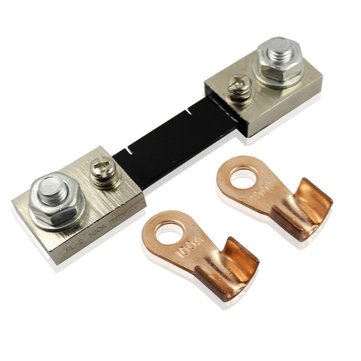

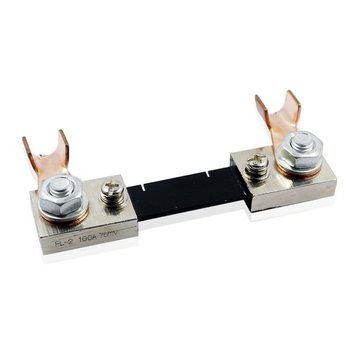

100A 75mV DC Current Shunt Resistor For Digital Ammeter Amperimetro Amp Meter Ampere Wattmeter Voltm

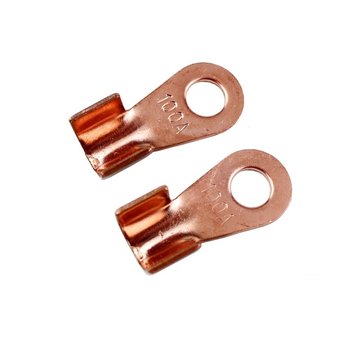

Description: ? The fixed setpoint shunt is a suitable the attached external shunt for measuring for DC current in 10kA less directly acting on the analog display instrument together with the use in order to expand the scope of the for DC current measurement, or sequentially circuit can be regarded as the current sampling with the standard resistors, a sampling voltage is measured with a current can be regarded as an analog signal ? Specifications: ? 1.Accuracy level :2-4000A, 0.5 level5000-10000A 1 level. 2.Environmental conditions: -40 ~ +60 , the relative temperature a??? 95% (35 ?￣ C) 3.Overload performance: 120% of rated current, 2 hours 4.Voltage drop: 75mV 5.Load heat: Temperature rise changes stabilized, rated current of 50A does not exceed 80 ?￣ C; rated current of 50A does not exceed 120 ?￣ C. Weight: 128g ? Packing Includes: ? 1 x 100A 75mV Shunt? 2 x Copper Terminls? ? Details Pictures:?
