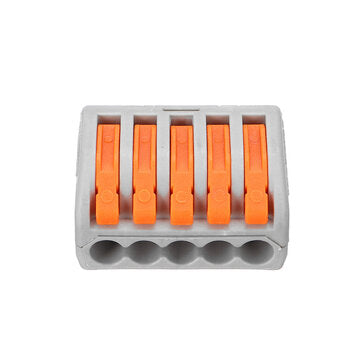

100Pcs/Set Terminal Block Reusable Electric Cable Wire Connector 2/3/5 Pin (HOLE STYLE: 5HOLES)

SELECTED OPTION:
HOLE STYLE: 5HOLES

Specification: - Type: 2 Pin, 3 Pin, 4 Pin (Option) - 2 Pin: Approx. 20 x 12.4 x 14.5 mm / 0.79 x 0.49 x 0.57 - 3 Pin: Approx. 20 x 17 x 14.5 mm / 0.79 x 0.67 x 0.57 - 5 Pin: Approx. 26 x 21 x 13 mm / 1.02 x 0.83 x 0.51 - Quantity:100PCS - Max. Voltage: EN 400V - Current Intensity: EN 32 A - Rated Impulse Voltage: 4KV - Max. Continuous Service Temperature: 85a?? - Number of connection points (connection type): 2, 3, 5 - Material of Insulation: Modified nylon - Strip length: 9 - 10mm - Wire Cross section:0.08~2.5mm2(single hard wire), 0.08~4mm2(multi soft wire) - Actuation Type: Operating Lever ? a??Features: - Quick, direct plug, plug the wrong can be pulled out, followed again. - Reliable, each contact shrapnel independent, fit different wire diameter, safety shorting. - Connect any combination of solid, stranded, and flexible copper wires faster and more reliably. - Secure and convenient, measure the voltage without removing tape - Easy to use & Durable. - It connects lighting fixtures, parasol curtains, awnings, doors and gate controls, inter phones, pumps, loudspeakers etc.

Package Included: - 100pcs Wire Connectors Set( 2 Pin / 3 Pin / 4 Pin Optional)
