100W SSB Linear HF Power Amplifier For YAESU FT-817 KX3 Heatsink CW AM FM C4-005 DIY KITS

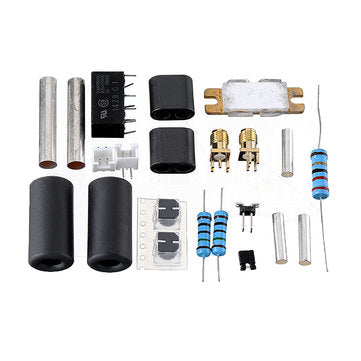

NOTICE: It is a diy kit, needs to solder it and without heatsink? ? Electrical parameters: ? 1. Operating frequency band 1.8 - 54 MHz? 2. Power supply voltage: 12V-16V 3. Current: 12A 4. Max input power:5W 5. Max output power: 100W(13.8V/80W;16V/100W) 7. Size: 50 x 100 mm 6. Air cooling: forced fan cooling IDQ=50--200ma ? Warning:? ? The output is forbidden to open circuit, short circuit, the prohibition of Bobbi 2 or more ? Package includes:? ? 1 x 100W SSB linear HF Power Amplifier DIY KITS without heatsink



After installation, For reference only:
