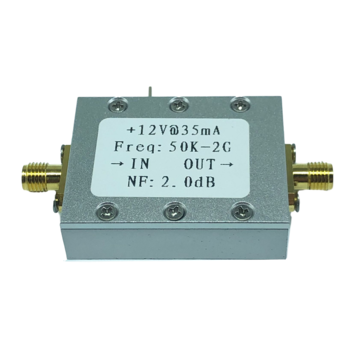

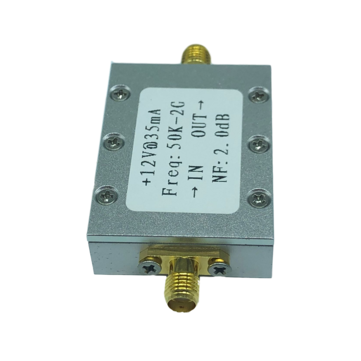

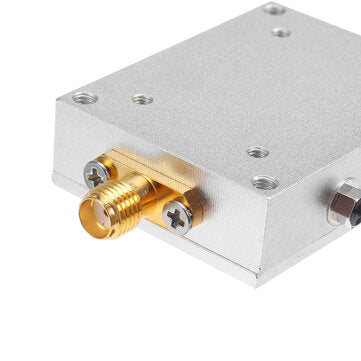

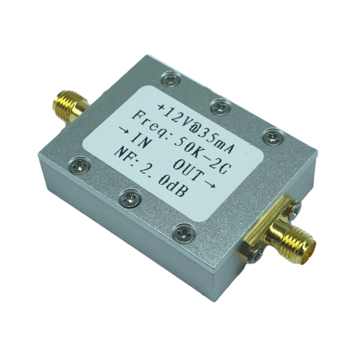

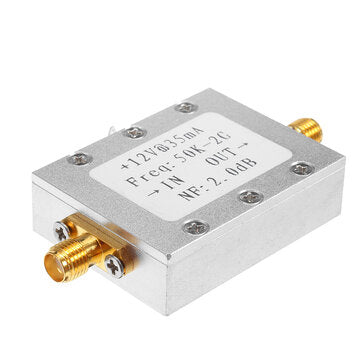

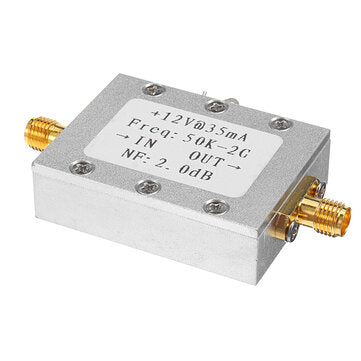

10K-2GHZ LNA RF Amplifier Module 31DB 0.5G High Gain Low Noise Wideband RF Amplifier with Shell

Feature:
1. Quality aluminum alloy shell , corrosion resistant and extend the service life. 2. Higha??accuracy frequency and high acceptance range, increase the scope of application. 3. Large input power, greatly improves work efficiency, strong practicality. 4. Advanced manufacturing technology, high reliability and stable performance. 5. Built to meet standard specification, strictly follow factory quality control.
Module Parameter:
1. Power Supply Voltage: DC9-15V, Typical +12V (Typical Current Value 35ma) 2. Gain: Typical Value 32dB@0.5G Input and Output Impedance: 50 Ohms 3. Maximum Output Power: P1dB 11dbm (@ 0.5G 4. Input Signal: <0dbm (the Output Signal Is Distorted When the Input Is Greater than 0dbm) 5. Bandwidth: 10K-2GHz (Gain Varies at Different Frequencies, Please Refer to S21 Curve Indicators for Details) 6. Noise Figure: 2dB@0.5G Material: Aluminum Alloy Product size with shell: 42*32*12MM (excluding terminal) Product weight : 36grams
Package included:
1 x RF Amplifier with Shell
