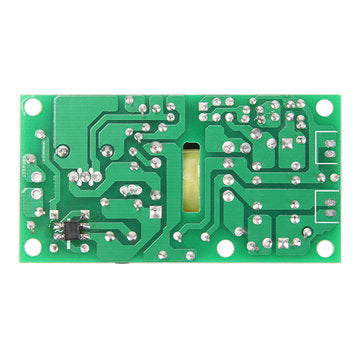

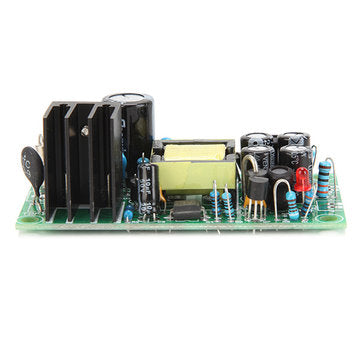

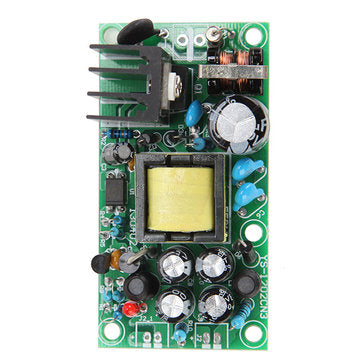

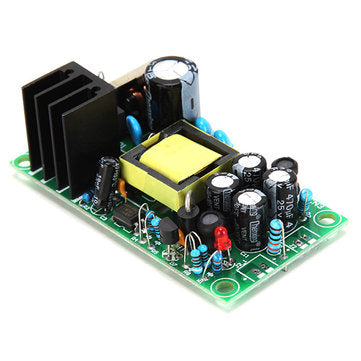

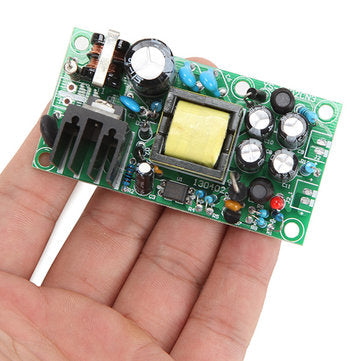

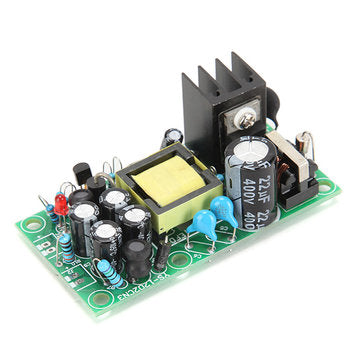

10Pcs 220V to 12V 5V Fully Isolated Switching Power Supply AC-DC Module

Feature:

The power supply is fully isolated industrial grade built-in power module with temperature protection, overcurrent protection and short circuit full protection, AC85 ~ 265V wide voltage input, high and low voltage isolation, DC12V1A 5V1A dual isolated output voltage, 431 regulated, output with EMI filter circuit, with light, with mounting holes, cost-effective.

Specification:

Working temperature: -20 a?? to 60 a??
Relative humidity: 40% RH - 90% RH
Input voltage range: 85V - 265V (typical: 110/220) (under full load conditions)
Input Current: 0.027 (AC110V) 0.0136 (AC220V) (under full load conditions)
Input surge current: 20A (under full load conditions)
Size: 7.5 x 4.0 x 4.0 (cm)

Output regulation characteristic:

Output voltage	Minimum current	Maximum current	Peak current	Output voltage range	Ripple
+12V	0A	1A	1.2A	11.80~12.5V	150mV
+5V	0A	1A	1.2A	4.90~5.1V	80mV

Other output characteristics:

Item	Unit	Min	Typical values	Max	Test Conditions
Output Power	W	0	17	18.5	DC output power
Output efficiency	%	?	84	?	Rated load
Boot shutdown overshoot	%	?	?	10	?
The output rise time	mS	?	?	100	?

Protection:

Item	Unit	Yes/No	Min	Typical values	Max	Recovery characteristics
Output voltage	V	?	13	?	13.5	Lock, restart after recovery
	?	?	5	?	5.4	Lock, restart after recovery
Output Power Protection	?	Yes	17	?	19	Lock, restart after recovery
Short circuit protection	?	Yes	?	?	?	Lock, restart after recovery
Temperature Protection	?	Yes	90?￣C	?	105?￣C	Lock, restart after recovery
Overcurrent protection	?	Yes	?	?	?	Lock, restart after recovery

Package included:

10 x Fully Isolated Switching Power Supply
