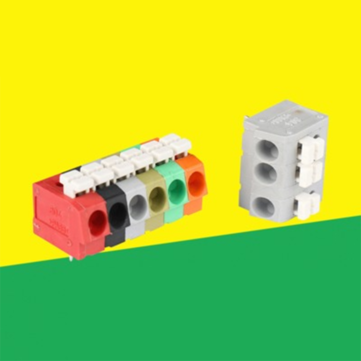

10PCS BEST 5 Pin Plug-in Brass Wire Connector Terminals LED Flame Retardant Terminal Block Connector

Specification
Brand	BEST
Type	5 Pin
Wire range	20-12AWG
Voltage rating	300V
Current rating	15A
Withstanding Voltage	2,000V
Stripping length	9.0mm
Material
Insulator(housing)	PA66, UL94V-0
Pin Header	Brass Tin Plated
Contact	Stainless Steel
Operating	-40?￣C to +105?￣C
Max soldering	+250?￣C For 5 seconds

Features:
- The shell is nylon PA66, flame retardant 94V-0 grade, in accordance with European ROHS standards;
- It has elasticity, rigidity and resistance to the corrosion of most chemical reagents, and has a strong resistance to leakage current breakdown. It allows continuous working at 105?￣C and maintains stability. The short-term high temperature limit is 165?￣C, and the low temperature limit is -35?￣C;
- Conductor material - high precision imported copper (C5210), electroplated tin,
- Wire terminals are widely used in power supply, transformer, electronic appliances, communication field;

Operation method:
Press the button and insert the single or multi-strand wire (multi-strand wire needs soldering tin) with a length of 8-9mm into the hole completely.

Disassembly method:
Press the button and pull it to remove the wire. There is a test hole above the hole for testing.

Package Included:
10PCS 5 Pin Wire Connectors
