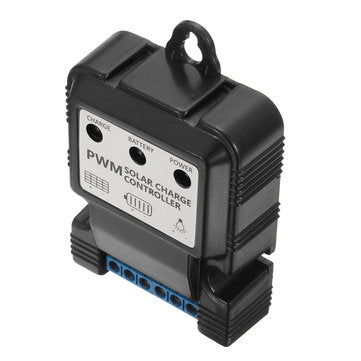

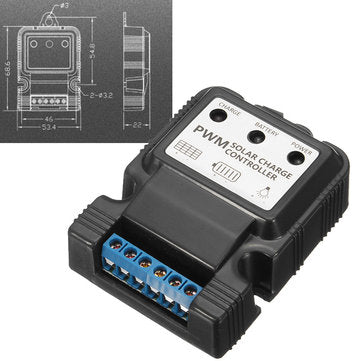

11.1V 5A PWM Solar Power Controller Intelligent Multiple Protection Controller
11.1V 5A PWM Solar Power Controller Intelligent Multiple Protection Controller
Regular price
$467.00 USD
Regular price
$778.33 USD
Sale price
$467.00 USD
Unit price
per
Couldn't load pickup availability

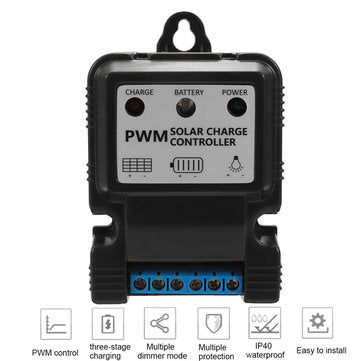

Features:
? -PWM control. -Three-stage charging. -Multiple dimmer mode. -Multiple protection: Overcharge protection / Short circuit protection / Overfall protection / Open circuit protection / Reverse connect protection / Temperature compensation. -IP40 waterproof. ? Specification:
? Charging mode: PMW mode Current: 5A Voltage: 11.1 V The input power: a???60W The input voltage: <25V Overload, short circuit protection: 1.5 times the rated current delay closed 5 minutes, automatic recovery after 5 minutes, 3 times rated current or short circuit protection Charging circuit step-down: a???700mV Discharge circuit voltage: a???100mV Overvoltage protection voltage:13.6V±1.5% Overpressure recovery voltage: 13.1V±1.5% Put protection voltage: 9.0V±1.5% Put the recovery voltage: 11.1V±1.5% Charge cut-off voltage: 12.6V ±1.5% Charging return voltage: 11.1V ±1.5% Bai Tianshe don't voltage: 7.0V± 1.5% The night don't voltage: 3.0V±1.5% Working temperature: -30a?? - + 55a?? Storage temperature: -45a??- + 70a?? Humidity: 90% RH or less Protection grade: IP40 Size: 53.4 x 68.6 x 22mm Install line number: AWG22-14/2mm2 ? Package included:
? 1 x Solar Charge Controller

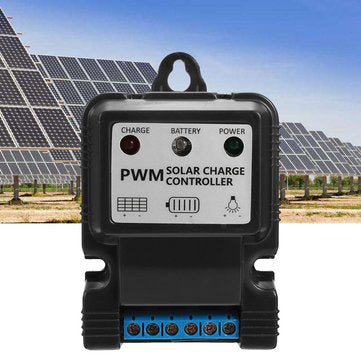

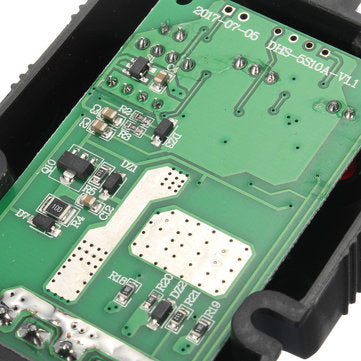

Detail Pictures:
?
