FR-YISHENG

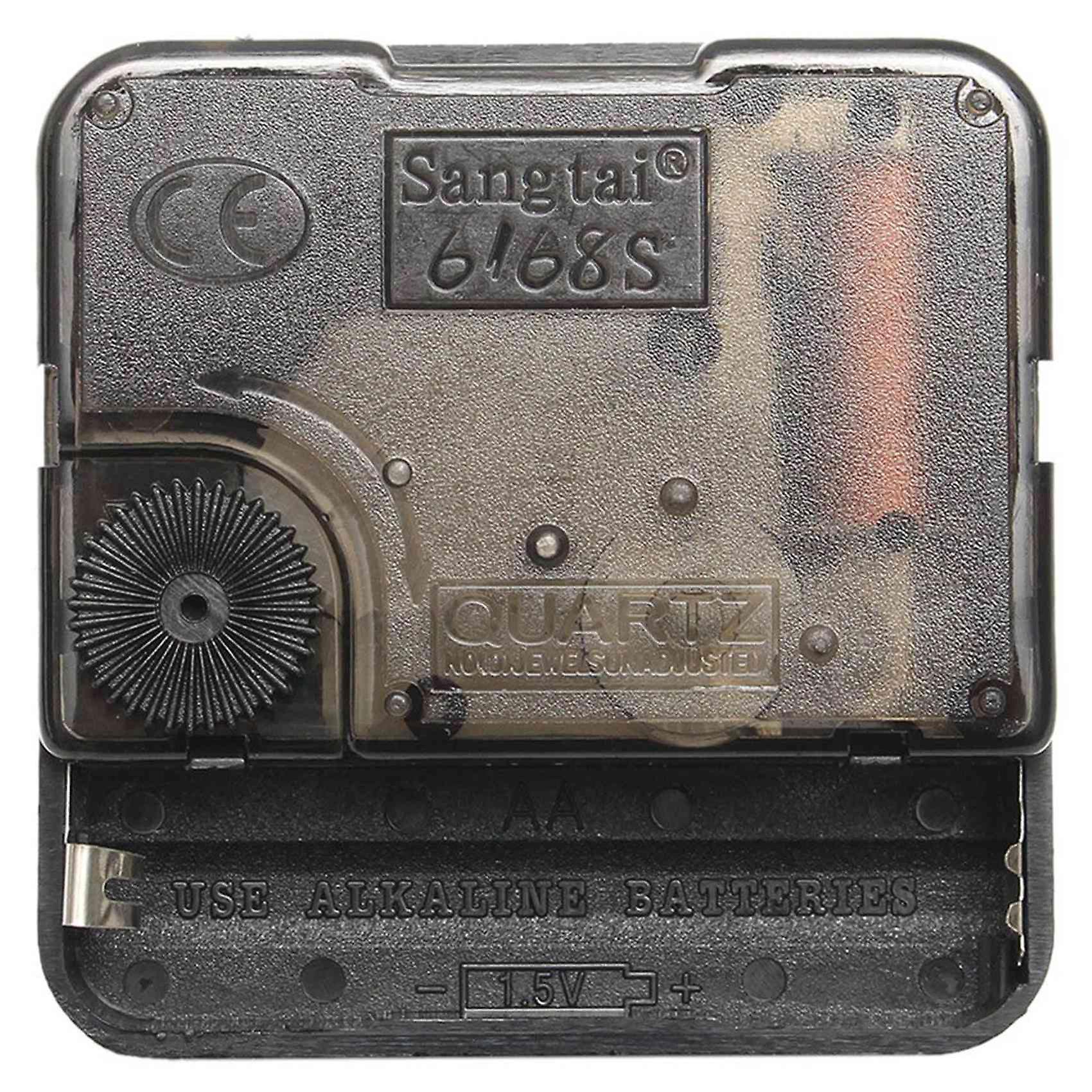

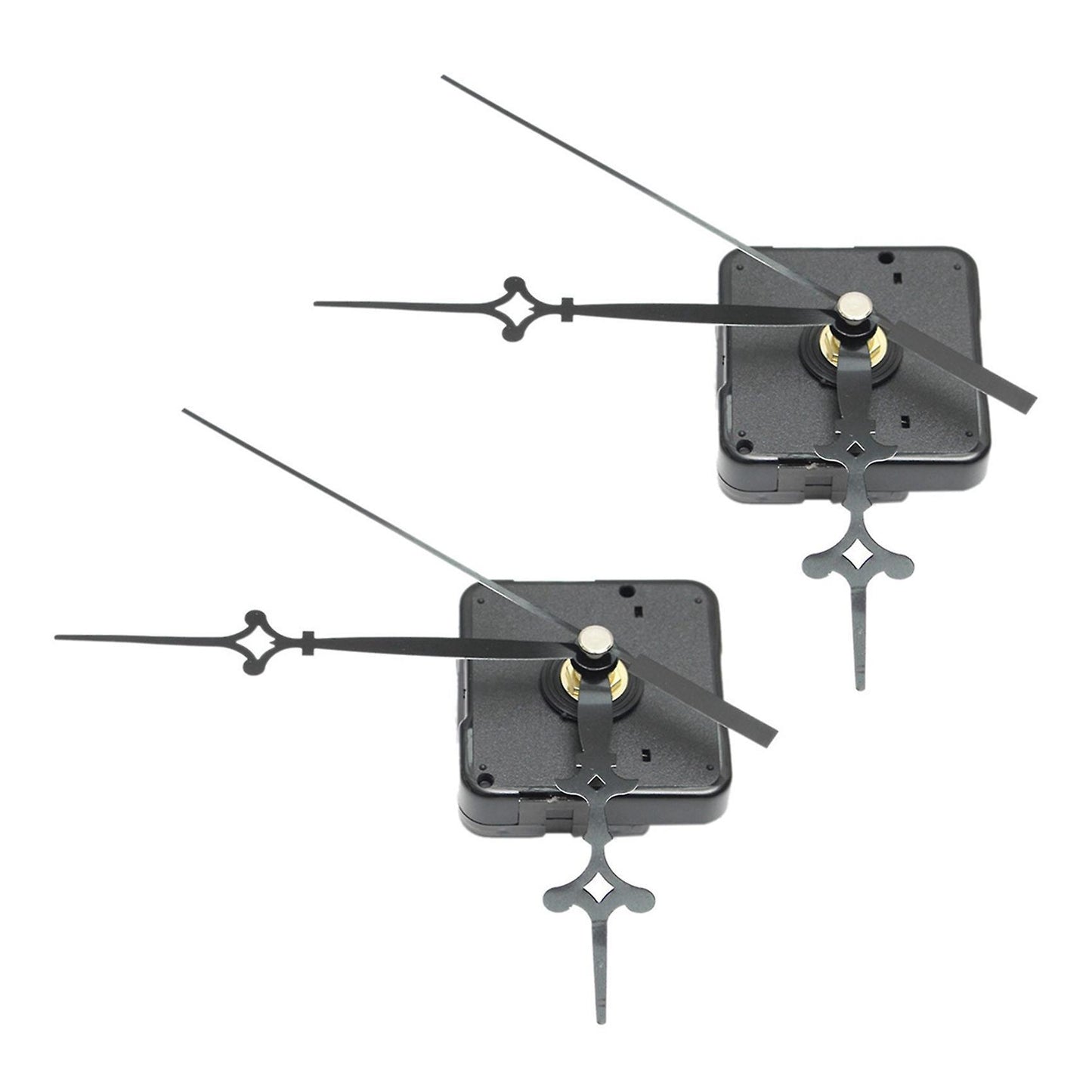

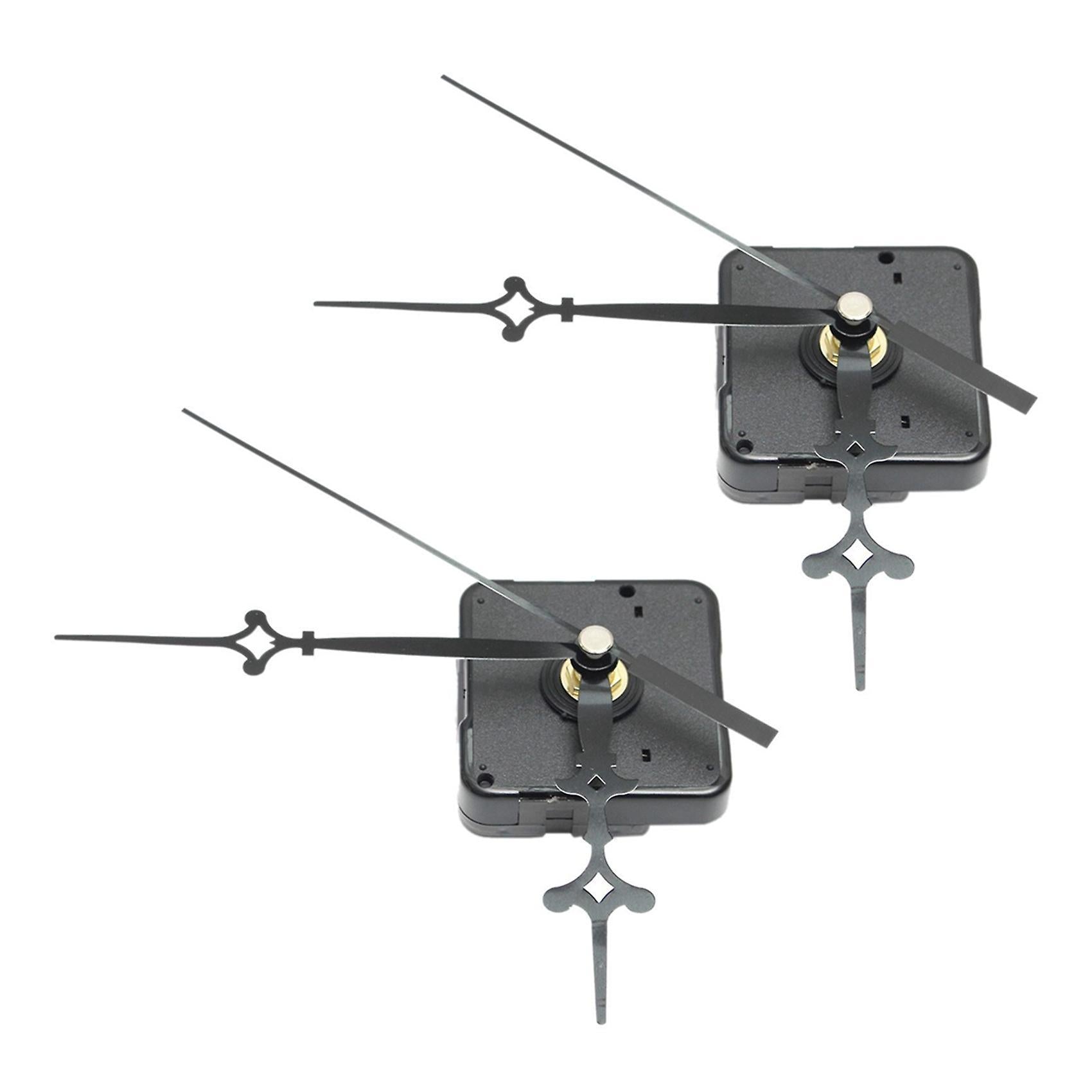

2x Replacement Diy Quartz Clock Movement Mechanism Motor Repair Kit
2x Replacement Diy Quartz Clock Movement Mechanism Motor Repair Kit
Regular price
$304.00 USD
Regular price
$0.00 USD
Sale price
$304.00 USD
Unit price
/
per
Couldn't load pickup availability

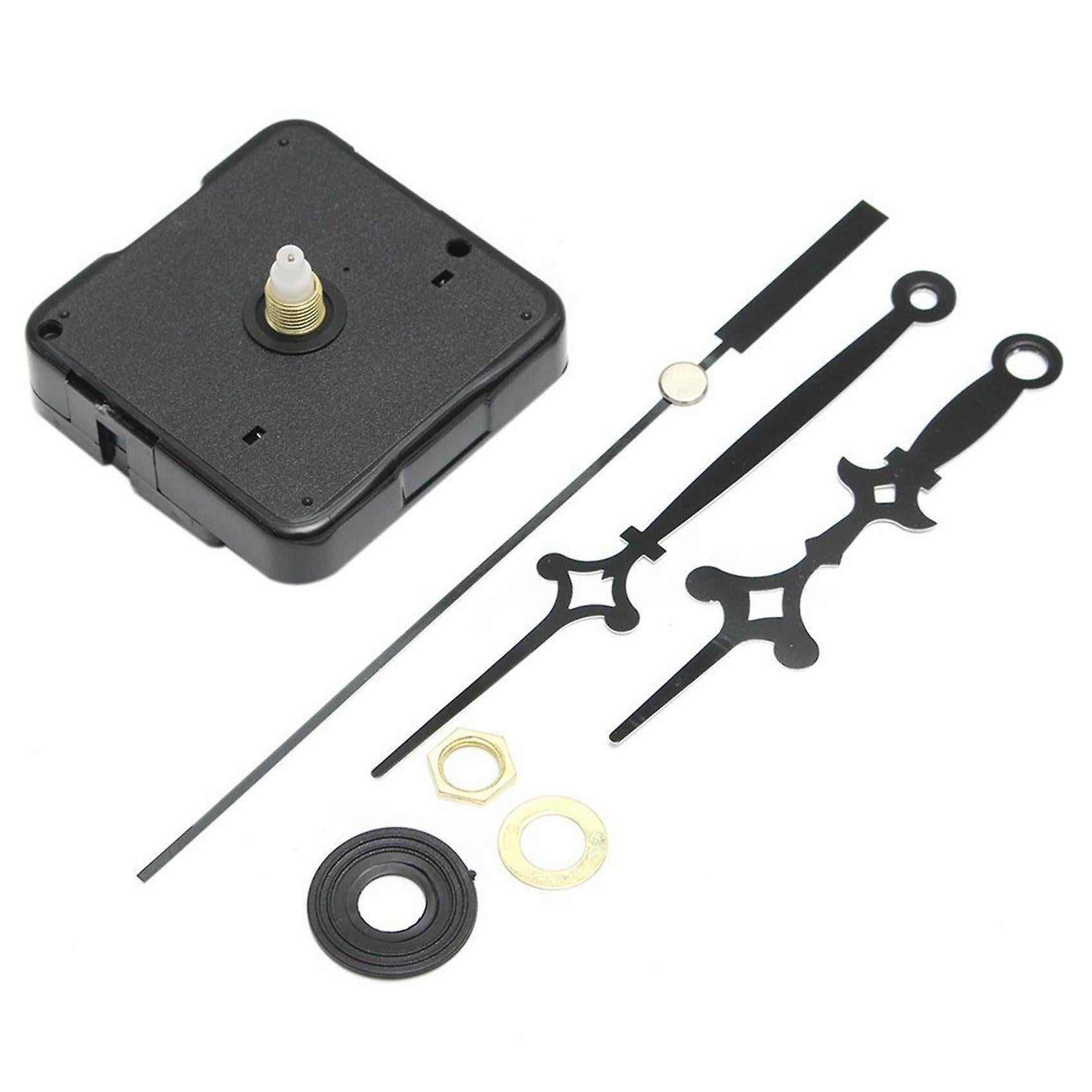

Motor Size: Approx. 55x55mm/ 2.17x2.17 inchHour Hand Length: Approx. 81mm/3.19 inchMinute Hand Length: Approx. 105mm/ 4.13 inchSeconds Hand Length: Approx. 100mm/ 3.94 inchPower Supply: 1 x AA Battery (Not included)Crystal Frequency: 32.768KHzAverage Daily Difference: +/- 2 sec/day at 1.5V, 24 Degrees CelsiusOperating Voltage: 1.25V to 1.7VWorking Temperature: -10 Degrees Celsius to 50 Degrees CelsiusCircumferential Output Frequency: 0.5HzSecond Hand Output Torque: greater than equal 1.5gf-cm (1.5V)Minute Hand Output Torque: greater than equal 30gf-cm (1.5V)Average Current Consumption: Under 160uA at 1.5vPerfect for repairing most types of clocksColor: BlackMaterial: plastic and aluminumPackage Contents:2 x Quartz Clock Movement Motor2 x Hour Hand2 x Minute Hand2 x Second Hand2 x Fittings KitOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
