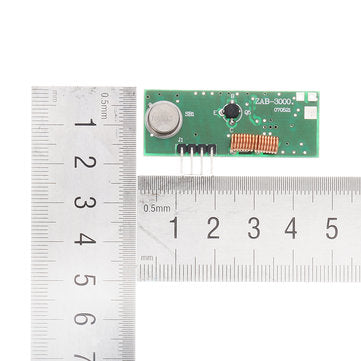

3pcs 315MHZ High Power Wireless Transmitter Module 3000M Long Range ASK Transceiver Board

Feature:

Product Name: Wireless 3000m Transmitter Module Product type ZAB-3000 (without coding) Dimensions : 45mm*17mm*6.2mm Working voltage: DC 9V ~12V Working current: 200~220mA Operating frequency: 315MHz Transmit power: >10mw Launch distance: 2000-3000 meters Radiated power: 1.5 W Modulation method: ASK Quiescent current: 0uA

Rated parameter	Symbol	Value
DC supply voltage	VDD-VSS	5V
Storage temperature range (TS)	TSTG	?-12?￣C to 75?￣C
Welding temperature	?+260?￣C	?

?	PIN	Description
1	ANT	RF signal input pin, this pin should be connected to the antenna
2	VSS	Positive power supply
3/4	GND	Negative power supply
5	DATA	Data signal output, compatible with CMOS levels

Package includes:

3 x?Wireless 3000m Transmitter Module
