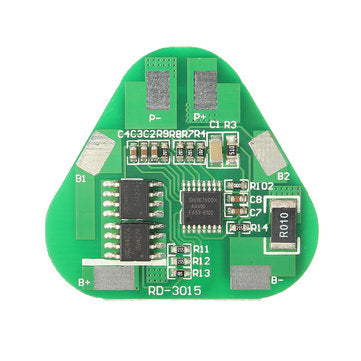

3pcs 4A 3S Li-ion Lithium Circuit Battery Protection Board Three Cell PCB

Features:

1. For Lithium battery operating voltage:? 10.8V ~12.6V
2. Applicable for ?10.8V (3.6V * 3S) lithium battery & packs
????????????????????????????? 11.1V (3.7V * 3S) lithium battery & packs
????????????????????????????? 12.6V (4.2V * 3S) lithium battery & packs
3. Cylindrical Lithium battery (Li-ion)
4. Prismatic Lithium Polymer battery (Li-Po)
5. Could also work for 3S2P (6 cells) , 3S3P (9 cells), 3S4P (12 cells) etc.
6. Protections: Short circuit protection,overcharge protection ,over-discharge protection and over current protection

Parameters:

1.Maximum protection voltage ( for every single cell ): 4.255V ± 0.05V
2.Minimum protection voltage ( for every single cell ): 2.35V ± 0.05V
3.Maximum operating current:?4A
4.Size: 35mm * 32mm

Package included:

3 x 3S Li-ion Lithium Battery Protection Circuit Board
