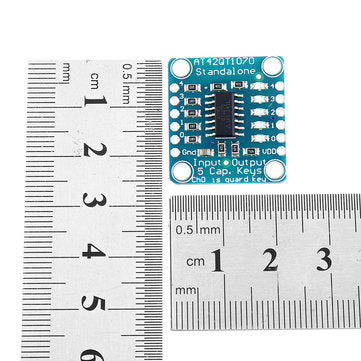

3pcs AT42QT1070 5-Pad 5 Key Capacitive Touch Screen Sensor Module Board DC 1.8 to 5.5V Power For Sta

Features: ? This board is the simplest way to create a project with multiple capacitive touch sensors. No microcontroller is required here - just power with 1.8 to 5.5VDC and connect up to 5 conductive pads to the 5 left-hand pins. When a capacitive load is detected (e.g. a person touches one of the conductive contacts) the corresponding LED on the right lights up and the output pin goes low. You can use this to update an existing normal-button project where buttons connect to ground when pressed. (Note that one contact will be detected at once (this is to protect against having a hand brush against two or more contacts at once.) The datasheet has many details on sensitivity, power usage, etc. - note that this board uses the chip in 'standalone' mode, it cannot be used in I2C mode. ? Specification: ? Model: AT42QT1070 Type: 5-Pad Capacitive Touch Sensor? ? Package includes: ? 3 x Capacitive Touch Sensor Board
