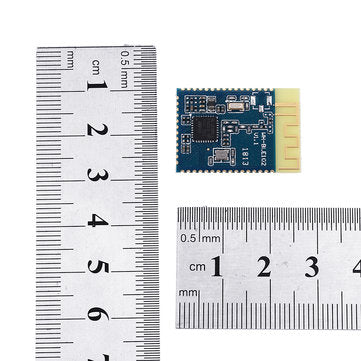

3pcs BLE102 Bluetooth Module Wireless BLE 4.1 Serial Port Ma-ster-slave Industrial Grade
3pcs BLE102 Bluetooth Module Wireless BLE 4.1 Serial Port Ma-ster-slave Industrial Grade
Regular price
£591.00 GBP
Regular price
£985.00 GBP
Sale price
£591.00 GBP
Unit price
/
per
Feature:
Package includes:
3 x Module
Classification | Description | Value |
Wireless parameter | Wireless standard | 802.15.1 |
Bluetooth specification | V4.2 | |
Frequency Range | 2.402GHz-2.480GHz | |
Transmit power | -14dBm to +8dBm | |
User can configure via AT command | ||
Receiving sensitivity | -85dBm | |
Antenna option | External: I-PEX connector | |
Built-in: onboard antenna | ||
Hardware parameter | Data interface | UART: 1200bps -921600bps |
Operating Voltage | 1.7V~3.6V | |
Working current | 500nA~10mA | |
Operating temperature | -40? ̄C- 85? ̄C | |
Storage temperature | -40? ̄C-85? ̄C | |
Size | 18.2??26.7??3 (mm) | |
Software parameter | Equipment type | ma-ster/slave |
Security Mechanism | 128-bit AES engine | |
Data encryption | PC1 encryption | |
Operating mode | ma-ster mode, slave mode, broadcast mode, Mesh networking | |
Setting command | AT+ command structure | |
User configuration | Serial AT command, transparent transmission of AT commands | |
Customer application software | Support customer customized application software |
Package includes:
3 x Module
