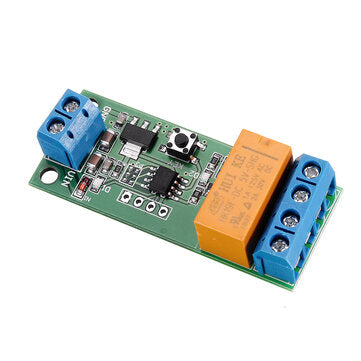

3pcs CE032 DC 5V 6V 9V 12V Motor Reversible Controller Time Adjustable Delay DPDT Relay Switch 2A 50
3pcs CE032 DC 5V 6V 9V 12V Motor Reversible Controller Time Adjustable Delay DPDT Relay Switch 2A 50
Regular price
£556.00 GBP
Regular price
£926.67 GBP
Sale price
£556.00 GBP
Unit price
per
Couldn't load pickup availability
.size_table_start table,.size_table_start table tr td { border:2px solid #ddd;}.size_table_start table { width: 100%; min-height: 25px; line-height: 25px; text-align: center; border-collapse: collapse;}.size_table_start,.size_table_end {clear:both;}
Specifications: ? ? Operating voltage: DC 5-12V(5V 6V 9V 12V) Operating current: 5V,forward 4ma, reverse: 36ma;12V, Forward 6ma, reverse: 44ma; Load voltage: DC 1-48V OR AC 85-265V Load current: Maximum 2A Forward maximum time: 5000 seconds, 0.1 seconds step Reverse maximum time: 5000 seconds, 0.1 seconds step By Time multiple selection setting,The maximum delay of up to 40 thousand?seconds.(short-circuited pad) Size: 54 x 22 x 15 mm
?
a??
a??By Time multiple selection setting,The maximum delay of up to 40?thousand?seconds ? How to Set Up:
?
? 1. After power, D1 3 blinks, Enter the work mode D2 on Reversal,D2 Off Forward 2. Press and hold the Key for 2 seconds,D1 on,enter the setup mode D2 off, It`s forward setup mode 3. In forward setup mode, the continuous trigger KEY twice ,D1 off,entry Standby timer mode 4. In the Standby timer mode ,trigger KEY start timing(entry Timing Mode) D1 flashing said it is timing(Timing Mode) Trigger KEY again to stop the clock(exit Timing Mode) D1 flashing time is forward time(T1)? 5. Press and hold the Key for 2 seconds,D2 on,enter the Reverse setup mode 6. In Reverse setup mode, the continuous trigger key twice ,D1 off,entry Standby timer mode 7. In the Standby timer mode ,trigger KEY start timing(entry Timing Mode) D1 flashing said it is timing(Timing Mode) Trigger KEY again to stop the clock(exit Timing Mode) D1 flashing time is Reverse time(T2)? So far, forward time(T1) and reverse time(T2) is set up Re-power in work mode
? Package Included: ? 3 x CE032 DC 5V 6V 9V 12V Motor Reversible Controller ?
?
?
How to Use: ? VIN connected to the positive of power supply , GND connected to the negative of power supply; P+ connected to the positive of Motor power supply, P- connected to the negative of Motor? power supply; M + M- are connected to both ends of the motor ? After power, D1 flashes 3 times, D2 off, M+ output positive, M- output negative, motor forward; after a time delay T1, D2 on, M+ output negative, M- output positive, motor reversal; after a time delay T2, D2 off, M+ output positive, M- output negativ, motor forward;and so on. ? T1: indicates motor Forward delay time, default 0.1-5000 seconds adjustable (step 0.1 seconds) T2: indicates motor Reverse delay time, default 0.1-5000 seconds adjustable (step 0.1 seconds)a??
a??By Time multiple selection setting,The maximum delay of up to 40?thousand?seconds ? How to Set Up:
?
? 1. After power, D1 3 blinks, Enter the work mode D2 on Reversal,D2 Off Forward 2. Press and hold the Key for 2 seconds,D1 on,enter the setup mode D2 off, It`s forward setup mode 3. In forward setup mode, the continuous trigger KEY twice ,D1 off,entry Standby timer mode 4. In the Standby timer mode ,trigger KEY start timing(entry Timing Mode) D1 flashing said it is timing(Timing Mode) Trigger KEY again to stop the clock(exit Timing Mode) D1 flashing time is forward time(T1)? 5. Press and hold the Key for 2 seconds,D2 on,enter the Reverse setup mode 6. In Reverse setup mode, the continuous trigger key twice ,D1 off,entry Standby timer mode 7. In the Standby timer mode ,trigger KEY start timing(entry Timing Mode) D1 flashing said it is timing(Timing Mode) Trigger KEY again to stop the clock(exit Timing Mode) D1 flashing time is Reverse time(T2)? So far, forward time(T1) and reverse time(T2) is set up Re-power in work mode ? Package Included: ? 3 x CE032 DC 5V 6V 9V 12V Motor Reversible Controller ?
?
