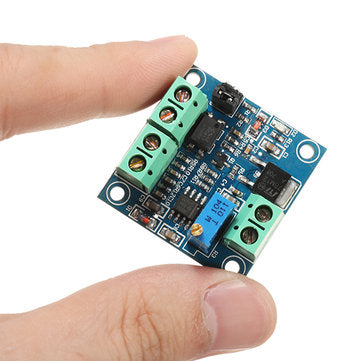

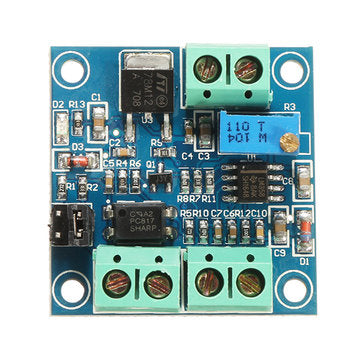

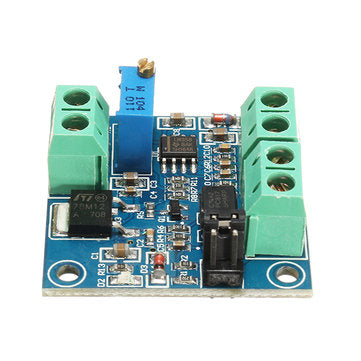

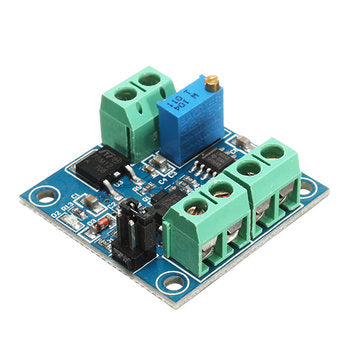

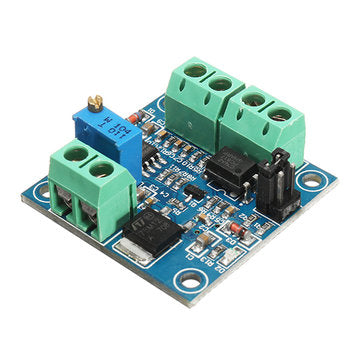

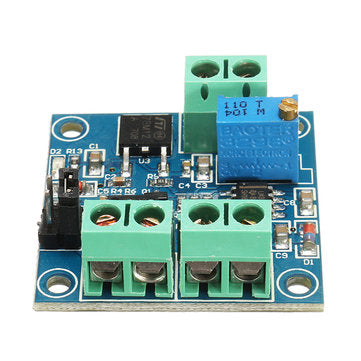

3Pcs PWM To Voltage Conversion Module 0-100% PWM To 0-10V Voltage

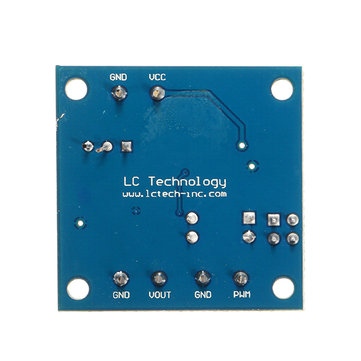

Description: ? Using single chip embedded technology; Peak 4.5v to 10V level, jumper inserted at 5V. This level of signal mainly for conventional industrial control card (such as MACH3 board Card) 5V CPU interface; Easy to operate, can be fine-tuned by potentiometer; Select the PWM signal input level range through short cap; Module is small, easy to carry and use; Module operating voltage: DC12V-30V (power requirements: greater than 100mA); PWM signal reception frequency range: 1KHz-3KHz; Peak 12 to 24V level, jumper inserted in the 24V. This level of signal is mainly aimed at the conventional PLC interface; Conversion range: 0% -100% PWM to 0-10v voltage; Allowable error: 5%; ? Pin Definition: ? VCC: working power 12-30V GND: ground PWM: input PWM signal positive GND: input voltage ground VOUT: Output voltage: 0-10V GND: output ground


Package included:

3 x?PWM To Voltage Conversion Module 0-100% PWM To 0-10V Voltage
