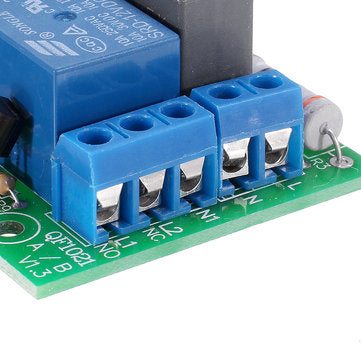

3pcs QF1021-A-10M 0-10Min Adjustable 220V Time Delay Relay Module Timer Delay Switch Timed Off with

Features: ? - Relay load capacity up to 10A250V - 3W metal oxide film resistor, withstand voltage - Double Zener to improve stability - Using single chip delay, time precision - QF1021-A-10M: (Time out -off) Turns on immediately after power-on, the delay is automatically disconnected, up to 10 minutes ? Specifications: ? Delay adjustment resolution: 100 levels, that is, the minimum range of 100 minutes can be adjusted to 1 minute, 1 minute per division. Delay error: 2% Standby power consumption: 1.0W Load capacity: 10A250V (General motor can be connected to 800W or less, please take the starting current as the standard) PCB size: 58mm * 43mm, height <20mm ? Applications: ? Home appliances, lighting delay modification, factory equipment delay control. ? Warmly Noted: ? The whole board is equipped with 220V voltage. It is necessary to pay attention to safety during installation and debugging to avoid personal injury from electric shock. ? Package Incldued: ? 3 x QF1021-A-10M 0-10Min Adjustable 220V Time Delay Relay Module
