3pcs SN04-N 5mm Inductive Proximity Sensor Switch Test Approach NPN NO DC10-30V

Specification:

1. Output : Switching Transducer
2. Sensing Distance : 5mm±10%
3. Working Voltage : DC 10-30V
4. Response Frequency : 500Hz max
5. Indicator : Red LED
6. Size: 18 x18 x 36mm/0.7 x 0.7 x 1.4(W*H*L)
7. Cable Length : 120cm
8. Hole Size : 0.95 x 0.4cm(L*W)
9. Extenal Material : ABS Resin

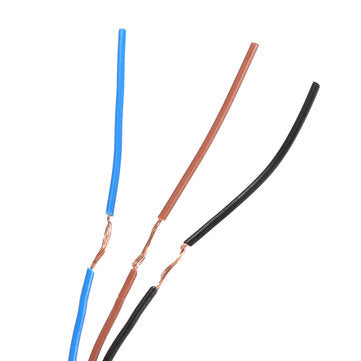

10. Cable: 3 wire brown + blue - black out
11. Protection class:IP 67
12. Over-current and short circuit protection
13. With LED indicate, easily identifiable.
14. With output NPN / NO
15. The Proximity Sensor Switch is used for testing parts such as size and speed can also be used in frequency counters, frequency pulse generator,
? ?? ? liquid level control and processing procedures for the automatic convergence.

Package included:

3 x Proximity sensor switch
6 x Screws
