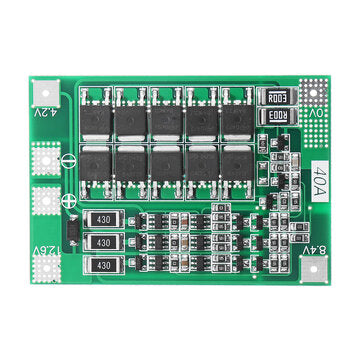

3S 40A Li-ion Lithium Battery Charger Protection Board PCB BMS For Drill Motor 11.1V 12... (TYPE: A)

3S 40A Li-ion Lithium Battery Charger Protection Board PCB BMS For Drill Motor 11.1V 12... (TYPE: A)

£374.00 GBP
£623.33 GBP £374.00 GBP
Sale Sold out

SELECTED OPTION:
TYPE: A

Description: ? Suitable for starting current below 80A, power 135W below the drill. (with balance) 3S 12.6V 40A lithium battery protection board (comes with recovery function-AUTO Recovery) Scope: Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, polymer lithium battery) Product Size: 41 * 60 * 3.4mm Product weight: 9.8g Charging voltage: 12.6V - 13.6V Continuous discharge current (upper limit): 40A (if the cooling environment is not good, please reduce the load current use) Continuous charge current (upper limit): 20A ? Note 1: The successful start of the drill requires three 15C-20C power battery, or six 10C-15C power battery (ordinary 18650 cannot start the drill!!). Note 2: Strictly according to map wiring 0V, 4.2V, 8.4V, 12.6V, do not deliberately short circuit. Note 3: When soldering the battery for the first time or while charging, as long as the single battery exceeds 4.2V, the 430 resistor will heat up and discharge (discharge to about 4.19V to stop heating). If the 430 resistor is severely hot, check if the wrong line is connected. ? For some of the poor basis of electronic customers to explain:
? Balanced charge is only auxiliary functions, try not to put a good battery?and poor battery mixed together! 3 sets of battery capacity / resistance closer to the better! (2 good battery +1 Poor battery use effect = 3 poor battery use effect).

Project Min. Typ. Max. Units Notes
Consuming?current 12 18 24 uA
