3S 4S 5S 130A 3.2V 3.7V Li-ion Lipo LifePo4 BMS Battery Lith... (BATTERY: LIFEPO4 | TYPE: 3STRINGS)

3S 4S 5S 130A 3.2V 3.7V Li-ion Lipo LifePo4 BMS Battery Lith... (BATTERY: LIFEPO4 | TYPE: 3STRINGS)

$778.00 USD
$1,296.67 USD $778.00 USD
Sale Sold out

SELECTED OPTION:
BATTERY: LIFEPO4
TYPE: 3STRINGS

Scope of Application: lithium iron phosphate, ternary lithium battery, lithium cobalt oxide, lithium manganese oxide battery pack.
Overview:

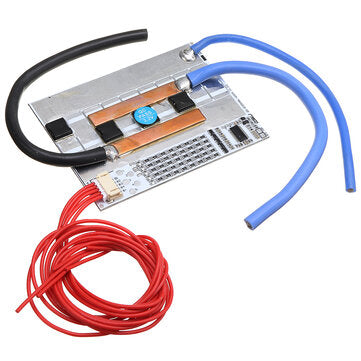

This is a lithium battery protection board specially designed for high-current lithium phosphate, ternary lithium battery, lithium cobalt oxide and lithium manganate battery packs for marine engine start-up. This protection board consists of 3 series, 4 strings, 5 series lithium battery protection board (the universal version adjusts the corresponding components according to actual needs), adopts mature protection circuit, special IC and supports disconnection protection, and imports high current ultra low internal resistance MOS ( The internal resistance of a single MOS is as low as 0.5 milliohms and the peak current of 1200A. It has perfect and stable charging and discharging protection functions. The battery core is balanced, the balance current is proper, the balanced heat is reasonable, and the performance of the battery pack is not affected. The measured condition is short-circuit protected, but it is not recommended to short-circuit. The short-circuit current is very large and it is easy to burn the battery and the protection board.
The discharge current of the versions without the heat sink reached 130A and the current of the appropriate heat sink was 230A. The short-term peak current is up to 376A.
Specifications:
3.2V LifePo4 BMS Battery Lithium Protection Board
project Min Typ Max Unit
Overcharge?voltage 3.61 3.65 3.69 V
Overcharge?recover voltage 3.5 3.55 3.6 V
Overcharge?voltage?protection?delay 500 1000 1500 mS
Over?discharge?voltage 2.27 2.35 2.43 V
Overdischarge?recover voltage 2.45 2.55 2.65 V
Over-discharge?voltage?protection?delay 500 1000 1500 mS
Over?discharge?protection?current / 376 A
Split?discharge?current?(continuous)?/?natural?cooling /
