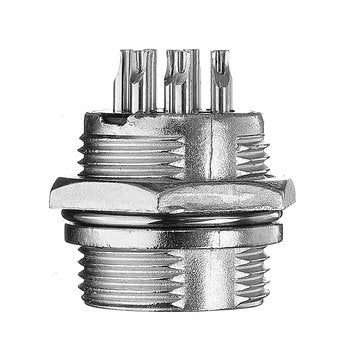

3Set GX16-8 Pin Male And Female Diameter 16mm Wire Panel Connector GX16 Circular Aviation Connector

Description: ? Diameter: 16mm Ambient temperature: -50 ~ +70 C Relative humidity: up to 98% at +40 C Atmospheric pressure: up to 4,4 kpa? Vibration: vibration frequency 10 ~ 100Hz, acceleration 100m/s2? Impact: Frequency of 60 to 80 BEAT / min, acceleration of 250m/s2? Centrifugal: acceleration 250m/s2? ? Main technical characteristics: ? Rated voltage: 250V Rated current: 5A? Contact resistance: (each contact pair)Less than 0.005 ??? Insulation resistance: In normal conditions, not less than 1000M??; after constant warm tests, not less than 20M??.? Separation Force: Each single foot separation force is 1-3N, total separation force is one and a half of the upper limit total amount of every single? foot separation Force? Temperature Rise: at rated load, the contact of the temperature rise should not exceed? +50 C ambient temperature? Life: after the use of the plugs 500 times, the sockets and outlets should not be damaged

Package included:

3 Set?GX16-8 Pin?Aviation Connector Socket Plug
