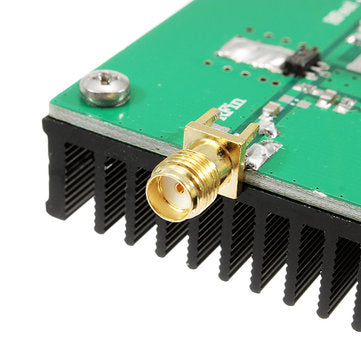

433MHz 5W RF Power Amplifier
433MHz 5W RF Power Amplifier
Regular price
£704.00 GBP
Regular price
£1,173.33 GBP
Sale price
£704.00 GBP
Unit price
per
Couldn't load pickup availability
Product Usage:
?
The broadband RF small power amplifier, suitable for all kinds of 380--450MHz launch use, such as: wireless remote control,
walkie-talkie and other launch use. Input 0.1W can output 5.0W@7.2V power, the amplifier is equipped with heat sink, long-term stable operation.
Technical Parameters:
?
Operating frequency: 380--450MHz
Input power: 0.1W (20dBm)
Maximum output: 2.5W (34dBm) 5.0V power supply
?????????????????????? ????? ?? 5.0W (37dBm) 7.2V power supply
??????????????????????????????? 8.0W (39dBm) 10.0V power supply (not recommended)
Operating voltage: 5 - 7.2V (DC)
Operating current: 1 - 2A (determined by output power)
RF connector: standard SMA female head
Dimensions: 50 * 50 * 15mm (L * W * H)
Product weight: 55g
Package included:
1 x 433MHz 5W RF Power Amplifier
,
,
,
,
,
,
,
,
?
