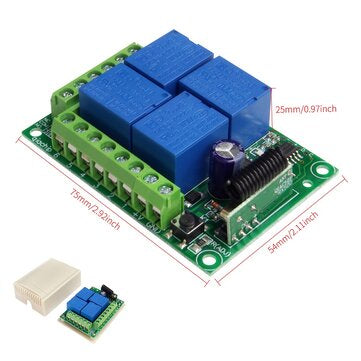

433MHz Universal Wireless Remote Switch DC12V 4CH RF Relay Receiver Module for Remote Garage/LED/Hom
433MHz Universal Wireless Remote Switch DC12V 4CH RF Relay Receiver Module for Remote Garage/LED/Hom
Regular price
£511.00 GBP
Regular price
£851.67 GBP
Sale price
£511.00 GBP
Unit price
per
Couldn't load pickup availability
Specification of? Receiver:
Model Number:KR1204-4 Input voltage: 12V Working current: 10A Maximum load power: 110W x 4 Frequency: 433Mhz Support encoding format: EV1527 Wiring method: NC COM NO Working mode: Momentary, Toggle, Latching Time delay
About Working mode:
Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects. Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects. Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect.
Learning the Code:(Momentary)
Press the learning key on the receiver once time, it comes into momentary setting mode. Wait for a moment, the LED will be off , it comes into learning state. Push the remote button, LED indicator on the receiver board will flash then come off. After 3 seconds, the LED indicator will be on again, learning successfully.
Learning the Code: (Toggle)
Press the learning key on the receiver twice time, it comes into toggle setting mode. Wait for a moment, the LED will be off , it comes into learning state. Press the remote button, LED indicator on the receiver board will flash then come off. After 3 seconds, the LED indicator will be on again, learning successfully.
Learning the Code:( Latching)
Note: When you choose for latching mode, in order to learn more remote control, you need to learn two different button, the first time learning is for ON, the second time learning for OFF. For example: Button A = ON, Button B = OFF Press the learning key on the receiver triple time, it comes into latching mode . Wait for a moment, the LED indicator on the receiver board will flash then come off. Press the remote button A. LED flash for 5 times. Press the remote button B. LED flash for 5 times After 3 seconds, the LED indicator will be on again, learning successfully. A = ON, B = OFF.?
Package included:
1 x KR1204-4? Receiver Module (Include Shell) Note: Not included Remote control
Details Pictures:
