ZHIQIAN

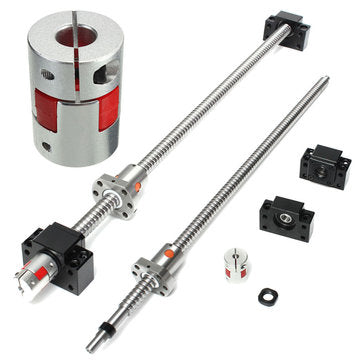

500mm SFU1605 Ball Screw with BK12 BF12 Supports and 6.35x10mm Coupler for CNC
500mm SFU1605 Ball Screw with BK12 BF12 Supports and 6.35x10mm Coupler for CNC
Regular price
$1,478.00 USD
Regular price
$2,463.33 USD
Sale price
$1,478.00 USD
Unit price
per
Couldn't load pickup availability
Description:
500mm SFU1605 Ball Screw with BK12 BF12 Supports and Coupler for CNC
Specification:
? Features:
-Fused with shiny surface matching with high precision. -more resistant to wear and tear, greatly extending the life cycle of the ball screw life increased several times. -more high temperatures in harsh environments without distortion to ensure stability. -smoother curve ball screw drive designers work more smooth and natural.
? Package Included:
1 x ball screw 1 x coupler 1 x screw 2 x supporting seat BK+BF12
? More Details:
500mm SFU1605 Ball Screw with BK12 BF12 Supports and Coupler for CNC
Specification:
| Model | SFU1605 |
| Material | Bearing steel |
| Diameter | 16mm |
| Length ball screw | 500mm |
| Effective distance(unprocessed) | 440mm |
| Size of supporting seat | 60/35*32*25mm |
| Size of coupler | 23*24mm |
| Diameter of coupler hole | 6.35*10mm |
| Basic dynamic rating load (kgf) | 765 |
| Basic static rating load (kgf) | 1204 |
-Fused with shiny surface matching with high precision. -more resistant to wear and tear, greatly extending the life cycle of the ball screw life increased several times. -more high temperatures in harsh environments without distortion to ensure stability. -smoother curve ball screw drive designers work more smooth and natural.
? Package Included:
1 x ball screw 1 x coupler 1 x screw 2 x supporting seat BK+BF12
? More Details:
