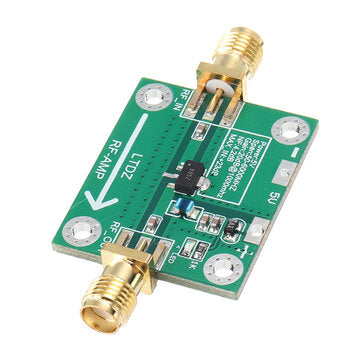

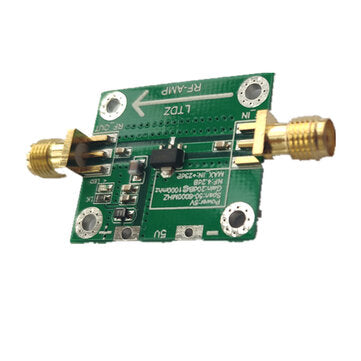

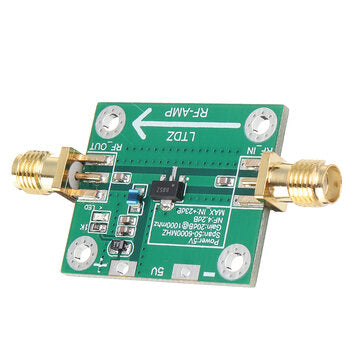

50M-6000Mhz SBB5089 20dB Gain RF Amplifier Board
50M-6000Mhz SBB5089 20dB Gain RF Amplifier Board
Regular price
$443.00 USD
Regular price
$738.33 USD
Sale price
$443.00 USD
Unit price
per
Couldn't load pickup availability
Specification:
1. Size: 49mm*25mm*6.5mm 2. Weight: 6g 3. Working voltage 5v 4. Frequency range: 50Mhz-600Mhz 5. Typical gain: 20dB@1000Mhz 6. NF: 4.2dB 7. P1dB: +20.4dB 8. IP3: 38dBm 9. Maximum input power: +23dB 10. Input impedance: 50 ohms 11. Module related applications: weak RF signal amplifier, RF power amplifier pre-amplifier
Package included:
1 x RF Amplifier Board
