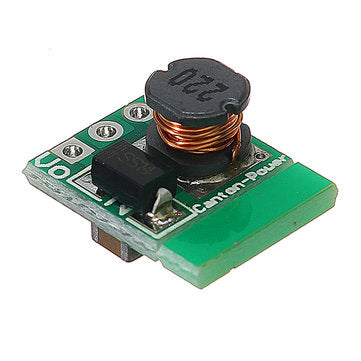

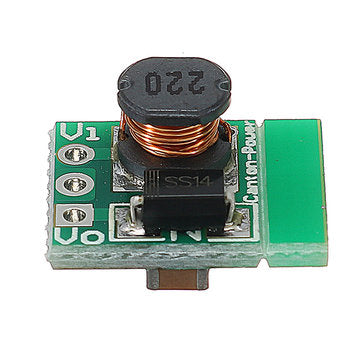

5Pcs 1.5V 1.8V 2.5V 3V 3.7V 4.2V 5V TO 3.3V DC-DC Boost Converter Module Step Up Board

Feature: ? Input voltage 0.8-3.3V output voltage 3.3V Maximum output current: 500 mA Starting voltage 0.8V, output current 10MA Input 1-1.5V, output 3.3V 50-110MA Input 1.5-2V, output 3.3V 110-160MA Input 2-3V, output 3.3V 160-400MA Input more than 3 v, and have spent 5V output of 400-400 MA Operating frequency: 150KHZ Typical conversion efficiency: 85% Pin 2.54mm spacing Size: 11mm x 7.5mm x 10.5mm (L x W x H) Weight: about 1 grams ? Note: ? 1. the input voltage is not greater than the nominal voltage, otherwise it will burn out the module 2. the input power must be greater than output power, otherwise the output voltage will be less than the nominal voltage. 3. the output load should not be greater than the nominal load, otherwise the output voltage will be less than the nominal voltage ? Package includes: ? 5 x Conversion module











, , , ,
