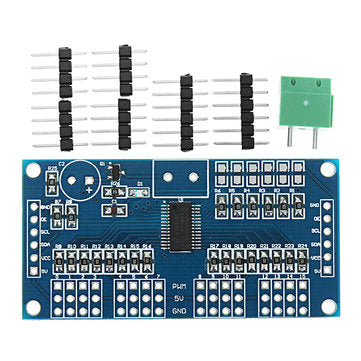

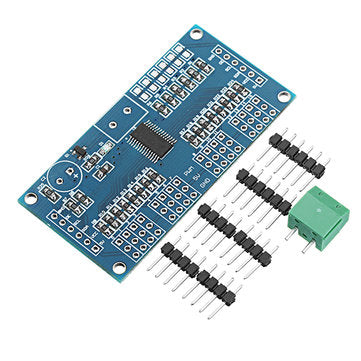

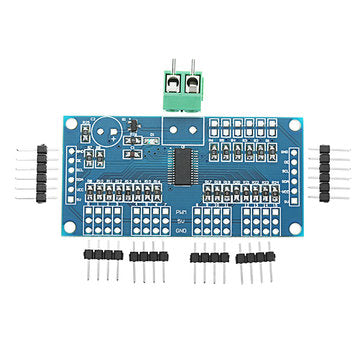

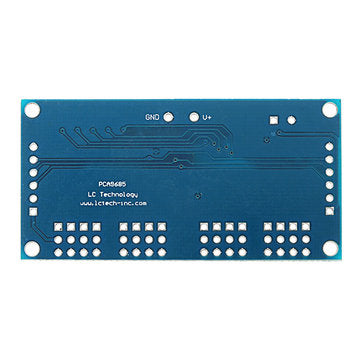

5pcs 16 Road PWM/Servo/Steering Gear Drive Plate Controller Module Robot IIC PCA9685

Overview:

PCA9685 module could control 16 road by PWM, every road programmable output for shut, open. Through the I2C communication.

The function and characteristics:

?a?? Working voltage: 2.3-5.5V
?a?? Communication protocol: I2C
?a?? Cannel number: 16
?a?? Resolution ratio: 12 bit
?a?? V+ Input: ?According to peripheral voltage, Maximum 6V

Feature:

?a?? The board size: 63.1*31.8mm

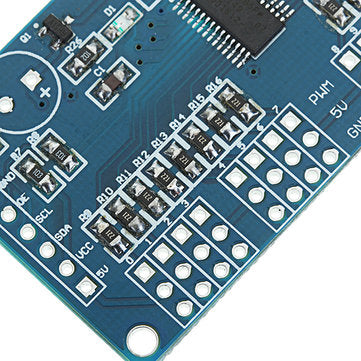

?a?? The board function description:
VCC: ?The working voltage of the module
GND: Ground
SCL, SDA: I2C communication interface
V+: Steering gear and other peripheral driving voltage
PWM: PWM signal output

VCC connect to the 5V, GND connect to the GND, SDA connect to A4, SCL connect to A5, steering gear with 0-15 arbitrary channel connection, burn write code , steering gear began to turn it.

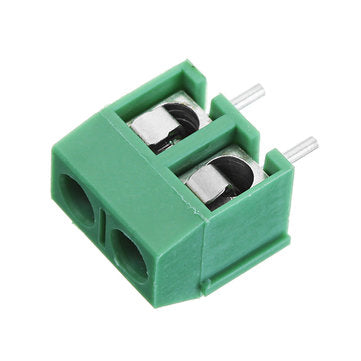

Package included:

5 x? 16 Road PWM/Servo/Steering Gear Drive Controller



?

?

?

?

?

?

?

?


, , , , , , , ,
