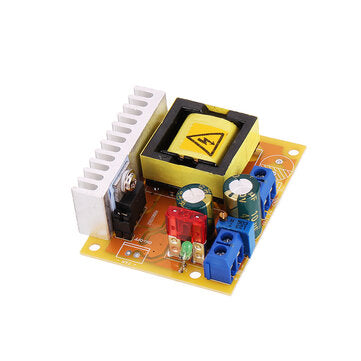

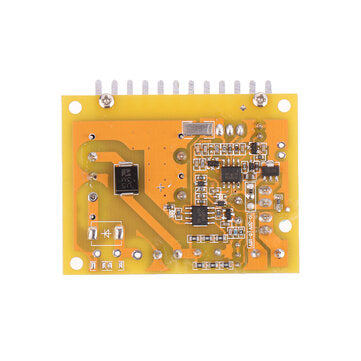

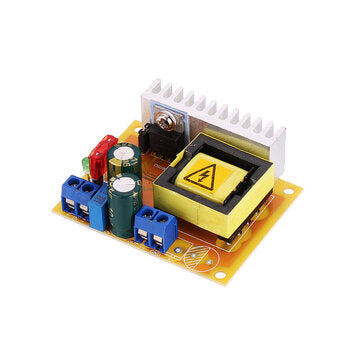

5pcs DC-DC 45-390V Adjustable High Voltage Booster Regulator Capacitor Charging Electromagnetic Powe

Feature:

Module Name: High Voltage Boost Module?(High Voltage?Warning:?Please pay attention during use.) Module nature: Non-isolated boost module Input voltage: Two input voltage ranges are available, (selected by jumper on the back of the PCB, the default is 10-32V input) 1. 8-16V input (for three-string lithium battery and 12V battery application) 2. 10-32V input (for wide input voltage range applications) Input current: 5A (MAX) Static working current: 15mA (12V liter 50V, the higher the output voltage, the static current will increase) Output voltage: 45-390V continuously adjustable (default 50V. This module has a voltage regulation function, the output voltage is not stable after adjustment, does not change with the input voltage changes) Output current: 0.2A MAX (related to input and output voltage difference, the higher the output voltage, the smaller the output current) Output power: 40W (peak 70W) Working temperature: -40~+85 degrees (enhance heat dissipation when the ambient temperature is too high) Working frequency: 75KHz Conversion efficiency: up to 88% (efficiency related to input, output voltage, current, voltage difference) Short circuit protection: Yes. (Input 10A fuse, please do not directly short-circuit the arc at the output end! Direct short-circuit pull arc may damage the rectifier device, if you want to short-circuit the arc, please limit the power resistor in series) Overcurrent protection: Yes. (Input current exceeds 4.5A, reducing output voltage) Overvoltage protection: Yes. (The output voltage exceeds 410V, reducing the output voltage) Input reverse connection protection: Yes (non-self-recovery type, connect the reverse-burn fuse, try not to reverse the connection.) Installation method: 4 3mm screws Wiring method: Terminal block welding output Module size: 60mmx50mmx22mm (length x width x height) Charge the capacitor to measure the measured data: 470uF full to 390V time 2 seconds 1000uF full to 390V time 4 seconds 2200uF full to 390V time 8 seconds 4700uF full to 390V time 18 seconds
Package includes:

5 x?High Voltage Boost Module
