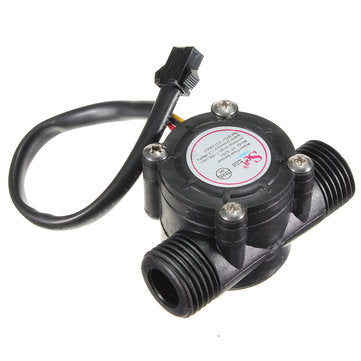

5pcs Hall Water Flow Sensor Flow Meter Water Control 2MPa

Description:

This product mainly used for water testing, water cooling system
High amplitude a??? 4.6V
Low amplitude a??? 0.5V
Electric strength 1250V/min
Insulation resistance a??? 100M??
Hydrostatic pressure testing a??? 2.0Mpa

Specification:

The lowest rated working voltage: DC4.5 5V-24V
Maximum operating current: 15 mA (DC 5V)
Working voltage range: DC 5~18 v
Load capacity: a??? 10 mA (DC 5V)
Use temperature: a??? 80?￣C
Operating humidity range: 35%~90%RH (no frost)
Allowing pressure: pressure 2.0Mpa
Temperature: -25~+80 ?￣C
External threads: 1/2
Outer diameter: 20mm
Intake diameter: 9mm
Outlet diameter: 12mm

Application:

Water heaters, credit card machines, water vending machine, flow measurement device!

Package included:

5 x Water flow sensor
