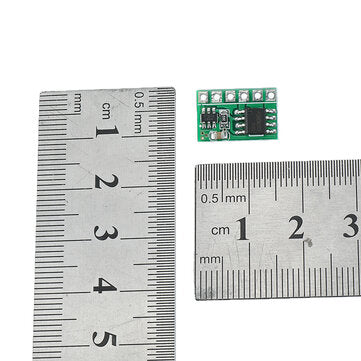

5pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Boar

Description:? ? ? ? Falling edge - triggered. Initial state after power no voltage output, once triggered, output terminal output the power supply votage, after once again trigger the output terminal no voltaged output, and so on.? Low standby power consumption, high output power. ? Specifications: ? ? Power supply voltage: DC 2.5V-6V? Standby current: less than 10uA? Driver IC is Dual P-channel MOSFET MEM2313,Maximum drive current is 6A Allowing continuous output current: 5A(5V-6V) 4A(3.7V-5V) 2A(2.5V-3.7V) Pin pitch:? 2.54mm.? Size: 15.5 x 10 x 2.5mm? ?? ? Note: ? Inductive load, the load to the appropriate freewheeling diode in parallel to avoid damaged to the switching elements of the circuit. ? Pin Description: ? Vo:output; Vi:power supply; G:power ground. T:trigger signal input terminal; ? Applications: ? MCU Development Board Motor mobile power LED Lighting 5V Relay esp8266 WIFI MODULE 315M 433M Wireless remote controller ? ? ?

Package Included:

5 x?Electronic Switch Latch Bistable Self-locking Trigger Module ?
