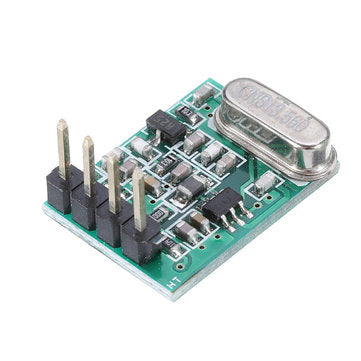

5pcs Low Voltage High Performance Transmitting Module 315MHz TX8 DC1.8V-3.6V ASK TTL Super Heterodyn

Characteristic: ? (1) The transmission power is large, and the transmission power is greater than 40mW; (2) Wide operating voltage: 1.8V-3.6V;?Rated current: 8 (mA) (3) Operating frequency: 315 MHz (4) Using PLL frequency stabilization (+-50KHZ), the working frequency is stable; (5) With the RXB8 receiving module, the distance can reach 500 meters; (6) The static power consumption is low, the current consumption during transmission is 20 mA, and there is basically no current consumption when there is no data transmission; (7) Working temperature: -40 ?￣ C ~ +80 ?￣ C; (8) Dimensions: 11x16x5.5mm; (9) Frequency stability: ±50 KHZ; (10) Modulation rate: 3 KB/S; (11) Input signal: TTL level. ? Application range: ? 1) Car remote door switch (RKE); 2) Remote control door opener and gate; 3) Wireless security alarm; 4) remote control curtain machine; 5) Wireless industrial controller; 6) Wireless data transmission.

Package includes:

5 x?Transmitting Module
