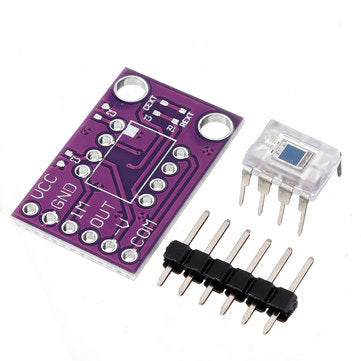

5pcs OPT101 Illumination Sensor Light Intensity Sensor Module Monolithic Photodiode

Feature: ? The OPT101 is an illuminance photosensor that integrates a photodiode and a specially optimized op-amp. The transparent package allows the photodiode to have a larger sensing surface with higher sensitivity and a wide spectral response range (infrared to visible light 300nm-1000nm).

? Parameter: ? Working voltage: 2.7 ~ 36V Working temperature: 0?￣C~70?￣C Photodiode light irradiation area: 5.2mm2 Photocurrent: 0.45A/W (?? = 650nm) Output voltage ratio: 0.45V/uW Analog voltage output range: Vs-1.15 Bandwidth: 14KHz Static power consumption: 120uA

? PIN Description: ? VCC: power supply positive pin -V: negative supply -IN: the inverting input of the internal op amp and the negative of the internal photodiode, Do not connect or apply feedback that is abandoned in the operation 1M: Internal 1M?? feedback resistor input OUT: Amplifier output COM: Internal photodiode positive, generally connected to GND Note: The module does not solder the CEXT external capacitor and the REXT external resistor, leaving the pad for easy extension.

Package includes:

5 x?OPT101 Illumination Sensor
