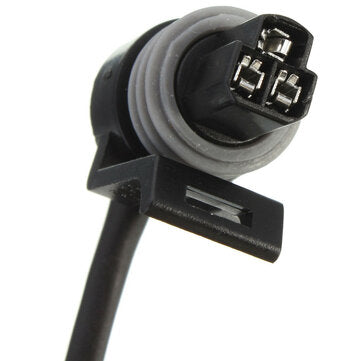

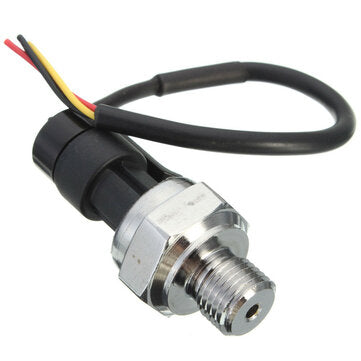

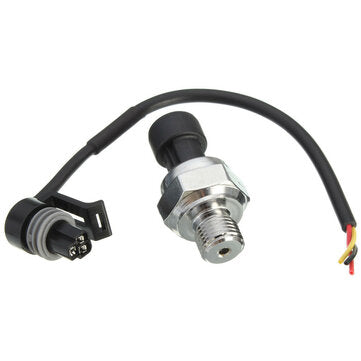

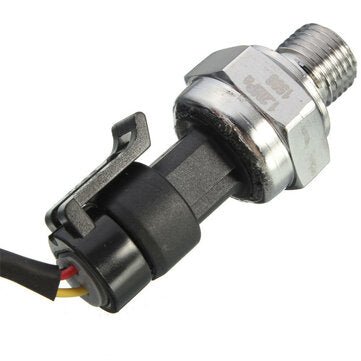

5V 0-1.2 MPa Pressure Transducer Sensor Oil Fuel Diesel Gas Water Air Sensor

Description:
5V 0-1.2 MPa pressure transducer sensor for oil fuel diesel gas. Sealed waterproof line, imported chips.
?
Specifications:

Working Voltage	DC 5.0V
Output Voltage	DC 0.5-4.5 V
Sensor material	Carbon steel alloy
Working Current	a???10 mA
Working Pressure Range	0-1.2 MPa
The Biggest Pressure	2.4 MPa
Cable length	19cm
Destroy Pressure	3.0 MPa
Working TEMP. Range	0-85a??
Storage Temperature Range	0-100a??
Measuring Error	±1.5 %FSO
Temperature Range Error:	±3.5 %FSO
Response Time	a???2.0 ms
Cycle Life	500,000 pcs
Application	non-corrosive gas liquid measurement

? Features: Easy removal, carbon steel connection more firmly. Stainless steel is durable, sealed waterproof line, imported chips. Wiring: red +, black -, yellow output. ? Package Included: 1x Pressure Transducer Sensor
