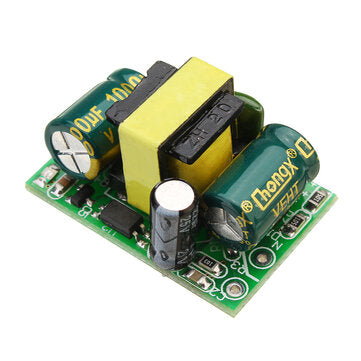

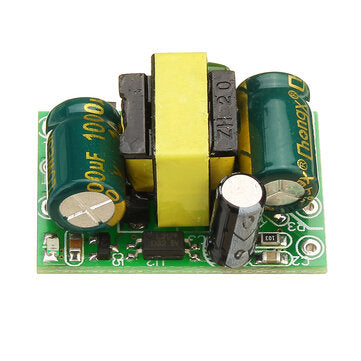

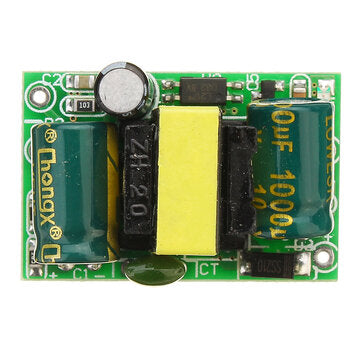

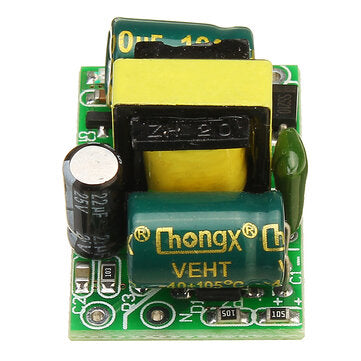

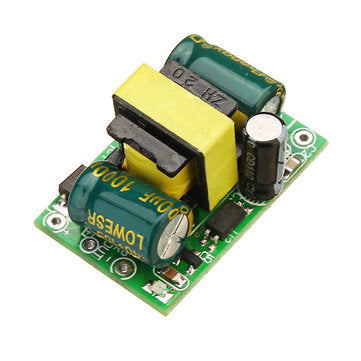

5V 700mA 3.5W AC-DC Step Down Isolated Switching Power Supply Module

Note:

There are 5V and 3.3V show as the picture, but the same function.
Show as 5V, it means output voltage 5V;
Show as 3.3V, it also means output voltage 5V, but with regulator chip, it can be output voltage 3.3V.

Feature:

Input voltage: AC 85 ~ 265v 50 / 60HZ or DC100v-370v Output voltage: DC5V (± 0.2V) Output Current: 700mA Power: 3.5W

Item	Unit	Minimum	Typical values	Maximum	Test Conditions
Input voltage range	V ac	85	110/220	265	Under full load condition
Input voltage range	? V dc	? ? ?100	? 150/300	? ? 370	?
Input Current	A	0.0273(AC110V) 0.014(AC220V)			Under full load condition
Input inrush current	A	20			Under full load condition ?

The output voltage	Minimum current	Maximum current	Peak current	Output voltage range	Ripple
+5V	0A	700mA	800mA	4.80~5.2V	60mV ?

Package included:

1 x?5V 700mA 3.5W AC-DC Step Down Isolated Switching Power Supply Module
