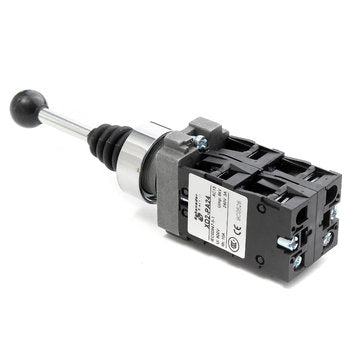

600V Spring Return Joystick Self-Reset Switch 4 Position 4NO XD2PA24CR Black

Description:
Color: Black
Material: Plastic+Metal
Dimensions: 175x40x30 mm
Ui:600V Uimp:6kV
Ith:10A
240V 3A
Mounting hole:22mm
Ambient temperature: -25 to +55 (without freezing)
Operating humidity: 45 ~ 85% RH (no condensation)
Contact resistance: a??? 50m??
Insulation resistance: a???100??
The maximum pressure: 3000 V, AC 50 Hz resistance
Vibration: 50 Hz, amplitude of about 1mm
Impact resistance: more than 10m / s2 (about 10G)
Life of machinery: (100 million); Electrical: (3 million or more)
Pollution level: 3
Protection class: IP40
Weight:141g
CCC & CE

Package Included:
1 x Spring Return Rocker Switch 4 Position 4NO XD2PA24CR
