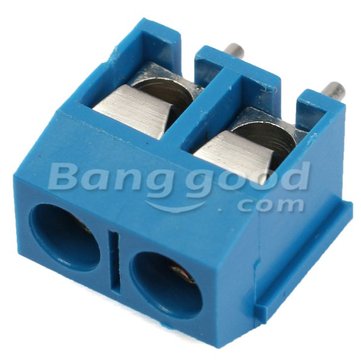

60pcs 2 Pin Plug-In Screw Terminal Block Connector 5.08mm Pitch

Description:

As a kind of connector, the terminal block is an important module in the electric industry.
It is convenient to connect wires.

Electrical Properties:

Rated voltage: 300V
Rated current: 16A
Contact resistance: 20m??
Insulation resistance: 5000M??/1000V
Withstanding voltage: AC1500V/1Min

Mechanical Properties:

Temp. Range: -30a??~+120a??
Max Soldering: +250a?? for 5 Sec
Torque: 0.5Nm

Specifications:

Material: Screws: M2.5 steel Zinc plated
Contact: phosphor bronze Ni plated or stainless steel
Pin header: Brass, Tin plated
Housing: PBT, UL94V-0
Pitch: 5.08mm Poles: 2P
Color: Blue
Quantity: 60

Package included:

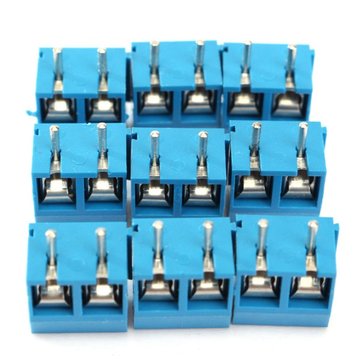

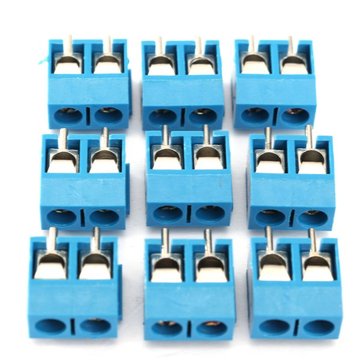

60 x Terminal blocks
