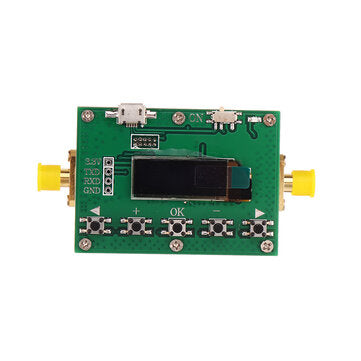

6G Digital Programmable Attenuator 30DB Step 0.25DB OLED Display CNC Shell RF Module

Feature:

The digital attenuator can adjust the signal level of the circuit in 0.25dB steps without interrupting the circuit. It can also be used as an in-machine attenuator for adjusting the power level in the test system. , High accuracy, stability and reliability, the use of OLED display attenuation, the attenuation can be controlled by the host computer. ? Technical indicators: ? 1. Working frequency: LF-6GHz 2. Attenuation adjustment range: 0-31.75dB 3. Attenuation step: 0.25 (dB) 4. Insertion loss: a???1.5dB (the insertion loss at the high frequency end will be a little larger) 5. Standing wave ratio: a???1.4 6. Attenuation accuracy: ± 0.25dB Max 7. Rated power: a???1W 8. Connector form: SMA (female, outer screw inner hole) 9. Temperature range: -10 a?? ~?+ 50 a?? (operation), -40 a?? ~?+ 70 a?? (not operation) 10. Dimensions: 55X40X16.5mm (excluding SMA interface protruding part, SMA protruding part 9mm) 11. Weight: 57g 12. Input and output impedance: 50 ohms
Package includes:

1 x?6G Digital Programmable Attenuator
1 x USB Cable
