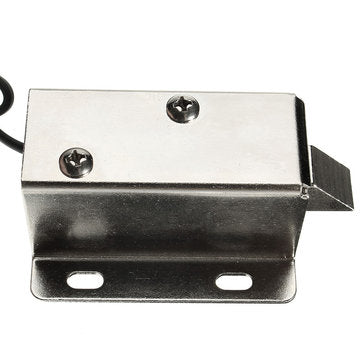

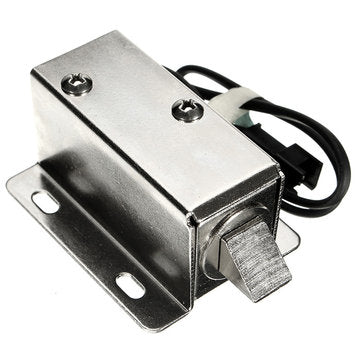

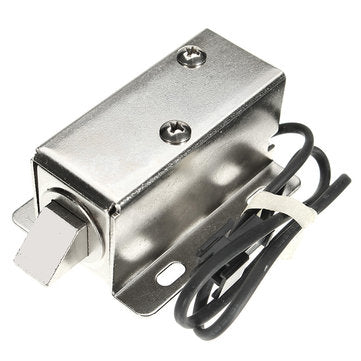

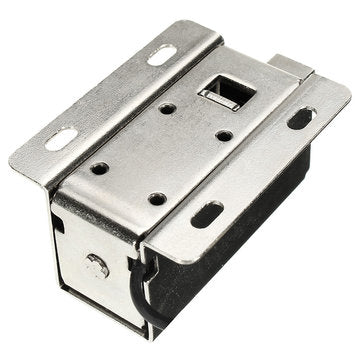

6V DC 1.5A Electric Lock Assembly Solenoid Cabinet Door Drawer Lock

Specification:
Voltage: DC 6V
Current: 1.5A
Energized Forms: Intermittent
Magnetic Force: 0.2kg
Unlocking Time: 1s
Continuously Energized: a???30s
Rated Stroke: 10mm
Cable Length: 280mm
Size: 55??42??29mm

Features:
1. Slim design, security and stability, low power consumption.
2. Designed with the open frame type and mount board, easy to installation.
3. Connected to a stable power supply, the central slug will be drawn and open when it's energized. And when it is not energized, the slug will stick out and close. It doesn't use any power in this state.
4. Suitable for doors, file cabinets, display cabinets, lockers, drawers, etc.

Package Included:
1 ?? Electric Cabinet Lock

More Details:
















, , , , , , ,
