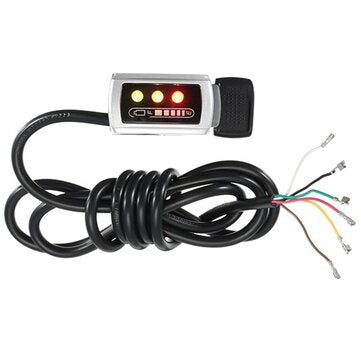

7/8 Inch Electric Bike Handlebar Speed Battery Indicator Thumb Scooter Throttle Wi... (VOLTAGE: 36V)

SELECTED OPTION:
VOLTAGE: 36V

for more options in this item.

Specification:

Material	Plastic?PA66 GF20
Cable?Length	Approx.?160cm?/?62.9inch
Battery Indicator Voltage	24V / 36V / 48V
Adjust speed Working Voltage	5V
Adjust speed Output Voltage	0.8-4.3V
Rotation?angle	0?￣---70?￣
Operation temperature	-40a???~?+80a??
Fitment	Fit for?Handle bar is 22mm or 7/8 Inch Electric bicycle,?Electric Scooter, MTV

Function:

Battery Indicator(Green,Red,Yellow) +??Self-Lock (The Red Button) + Adjust Speed (The Black Button)
Green Light =High Power
Yellow Light=Half Power
Red Light=Empty Power
Red ,Black and?White wire---?Adjust speed
Green wire----Positive (Battery Indicator,
Yellow and coffee wire---Self-Lock/Switch on or off
Adjustable-Speed Button can be fit for this function,but your bike need to have this function.??Cruise / L?G

Reversing Lamp switch /?run?at?full?speed?Automatically / Handlebar Switch on or off / Low battery Keep working

Note:

Do Not touch the Adjustable-Speed Button before installation, because if you touch the?Adjustable-Speed Button

before installation, the inside springs may be taken out, this item can not be used.

Package Included:
1 X Handlebar with Battery Indicator
