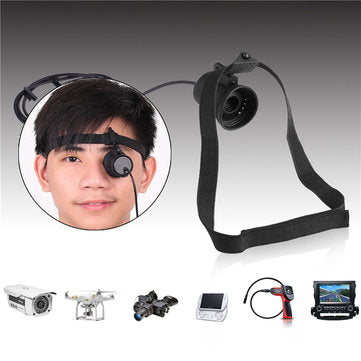

80 inch Monocular Mini Micro Display HD Night Vision with Headband Goggles AV Series for FPV Monitor

Features :
Big screen, high-definition display effect, exquisite and vivid picture. The display module can be equivalent to 2 meters distance virtual 80 inch screen. VGA pixels of micro display chip, image as well as the light source system, high-performance optical engine, the drive control circuit. FPV model aircraft display, easy to plug in both the user to carry and operate. Monocular display suite, night vision, medical, information, infrared detection, power monitoring electronic suite viewfinder. Any other devices with AV out. ? Specification :

Display	ONE TFT LCD display chips
Resolution	854x480 (WQVGA)
Screen Ratio	43
Color Depth	24-bit input
Viewing Angle	26?￣ diagonal
Image Input	Composite AV/CVBS
Video Signal	NTSC/PAL/SECAM automatic selection
Working voltage	3.7-5V
Working current	120MA
power consumption	0.6W
Supported formats	8-bit RGB-serial data, Hd, Vd, Valid, Clock
Display frame frequency	120Hz(NTSC), 100Hz(PAL)
Viewing Angle	26
An exit pupil distance	20mm
An exit pupil diameter	1-2m
AV input	P/N

? Optical: Nematic liquid crystal Fill factor: <50%? Color generation: Color filter triads Video controller: External Switching Speed: 6-20?millisecond ? Package includeds :
1 x HD Display
1 x Hood 1 x Bind 1 x User Manual ? Details pictures :












, , , , , , , , ,
