80A Solar Panel Charge Controller 12V 24V Auto LCD USB Solar Battery Charger High Efficiency Solar 8

Overview:
This is High Efficiency Solar charge Controller 60A and 80A , it can be used to charging 12V 24V Lead Acid,Gel ,AGM ,Flood ,Sealed Batteries ,ect. About Solar80 80A , if your battery is 12V , you can use max 960W 25V Solar Panel ;if your battery is 24V ,you can use Max 1920W 50V Solar Panel.

Features:
Multipurpose solar charge and discharge controller LCD screen display Easy operation interface PWM charging mode Parameter user can reset, A key to open and close the load, A key to restore the factory settings, Battery reverse discharge protection, Battery reverse polarity protection Battery under voltage protection, Overload, short-circuit protection, Automatic temperature compensation function, USB 5V charging for mobile phone
Working Parameter:
Model:Solar80 80A System voltage: 12V 24V Auto Max Charging Current:80A Max. PV open circuit voltage:50V(24V System):25V(12V System,) Max. PV input power:1920W(24V System);960W(12V System)
Float charging voltage:13.8V/27.6V(settable) Low voltage protection:10.7V/21.4V (settable) Low voltage restore:12.5V/25.0V(settable) No-load loss:a???25mA Loop pressure drop:a???160mV Temperature compensation:-4mV/Cell/a?? No-load loss:a???25mA Loop pressure drop:a???160mV Temperature compensation:-4mV/Cell/a?? Size:7.4*5.04*2.4 inch Working temperature: -10a??~60a?? Humidity temperature: -30a??~70a??
Protection:
PV Over Current Protection?
PV Short Circuit Protection? PV Reverse Polarity Protection? Battery Over Voltage Protection Battery Over Discharge Protection? Battery Overheating Protection? Load Short Circuit Protection? Load Overload Protection? Controller Overheating Protection?

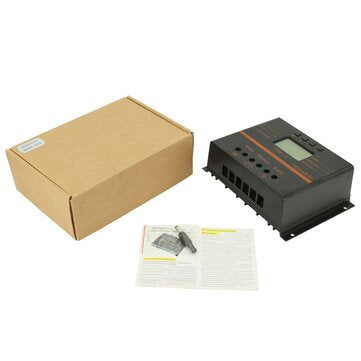

Package included:
1 x?Solar Panel Charge Controller? 1 x User manual 1 x Packing box
