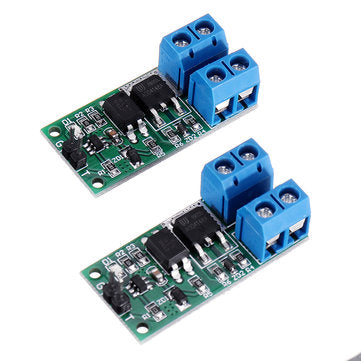

8A Flip-Flop Latching Switch Module Bistable Self-Locking Trigger Board (VOLTAGE: 9-24V)

8A Flip-Flop Latching Switch Module Bistable Self-Locking Trigger Board (VOLTAGE: 9-24V)

$399.00 USD
$665.00 USD $399.00 USD
Sale Sold out

SELECTED OPTION:
VOLTAGE: 9-24V

Features: ? - Falling edge - triggered. Initial state after power no voltage output, once triggered, output terminal output the power supply votage, after once again trigger the output terminal no voltaged output, and so on. - Low standby power consumption, high output power,Optical Isolation. - Power supply voltage:9V-24V/3V-12V - Size: 36 x 17.5 x 14mm - Standby current:less than 0.11-1mA - Driver IC is N-channel MOSFET AOD4184,Maximum drive current is 8A ? Note: ? inductive load, the load to the appropriate freewheeling diode in parallel to avoid damaged to the switching elements of the circuit. ? Pin Description: ? Vi+:Power Input +; Vi- :Power Input -; Vo+:Power Output +; Vo- :Power Output -; G:trigger signal input ground; T:trigger signal input terminal(0.2-2 second low pulse trigger). ? Applications: ? Self-locking electronic switch ARM MCU Development Board Motor/Relay /Solenoid valve IP PTZ camera esp8266 WIFI Router MODULE 315M 433M Wireless remote controller PLC MODBUS Device ? Package Included: ? 1 x 8A Flip-Flop Latch Switch Module
