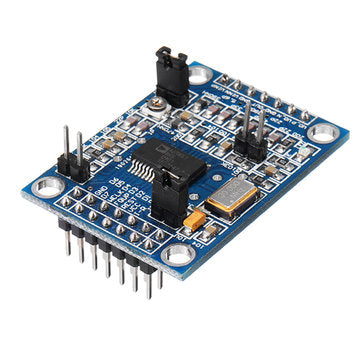

AD9851 DDS Signal Generator Module 2 Sin Wave(0-70MHz) And 2 Square Wave(0-1MHz)
AD9851 DDS Signal Generator Module 2 Sin Wave(0-70MHz) And 2 Square Wave(0-1MHz)
Regular price
$914.00 USD
Regular price
$1,523.33 USD
Sale price
$914.00 USD
Unit price
per
Couldn't load pickup availability
Description:
? DDS information Description:Output 2 sine wave and 2 square wave - AD9851: 0-70MHz - Harmonics increases frequency increases after the 20-30MHz, the waveform Getting worse - Square Wave: 0-1MHz - Use 70MHz Low-pass filter, make Waveform SN ratio Better - Parallel and serial data input can be selected via a jumper - DA benchmark Pin (PIN12) output, Convenient to do the output waveform Rate adjustment application. - Comparator reference input voltage is Generated by the variable resistor, - Adjustment this resistance can get different duty cycle square wave - AD9851 module Using 30MHZ Active crystal - AD9851 Clock frequency up to 180MHz, AD9851 has 6 octave
Package included:
1 x?AD9851 DDS Signal Generator Module
