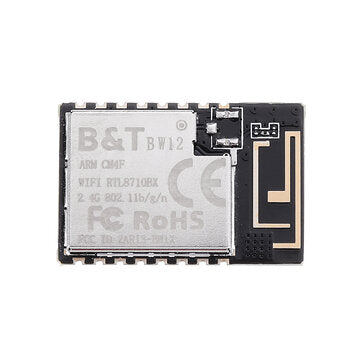

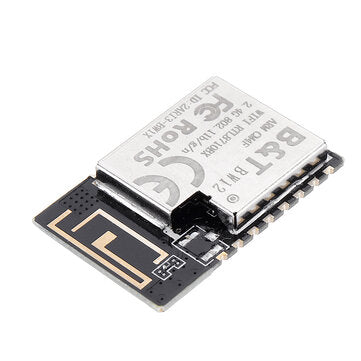

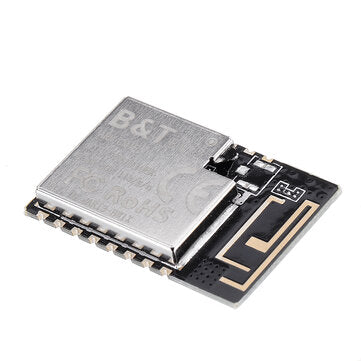

AI-Thinker BW12 Wi-Fi Controller Wireless SoC Module Serial Port RTL8710BX Onboard Antenna

.size_table_start table,.size_table_start table tr td { border:2px solid #ddd;}.size_table_start table { width: 100%; min-height: 25px; line-height: 25px; text-align: center; border-collapse: collapse;}.size_table_start,.size_table_end {clear:both;}

Feature:
a??
a??Model: BW12

Product type: SoC WIFI module

Main chip: RTL8710BX

Supporting agreement: 802.11 b/g/n

Communication Interface: UART, I2C, SPI, GPIO, SWD, PWM

Standard Voltage: 3.3±10% V

Operating temperature: -20 ???+85?? C ambient temperature

Storage temperature: -40 ???125??C ambient temperature

Working humidity: 5 to 93 % maximum (non-condensing)

Package size: 24 x16x 3mm (LxWxH) ±0.2mm
a??
a??Package includes:
a??
a??1 x?Wireless SoC Module
