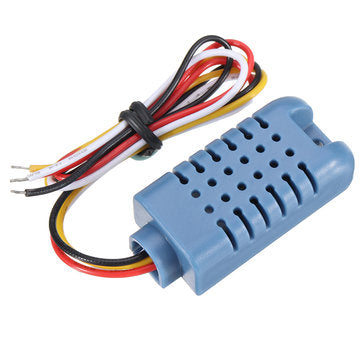

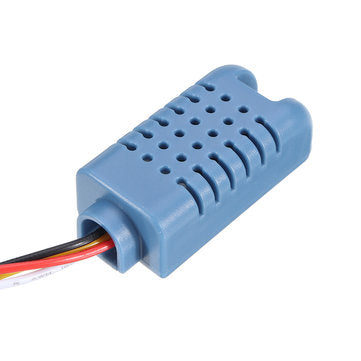

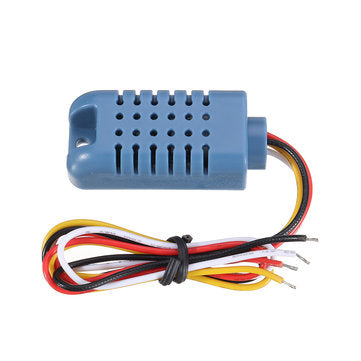

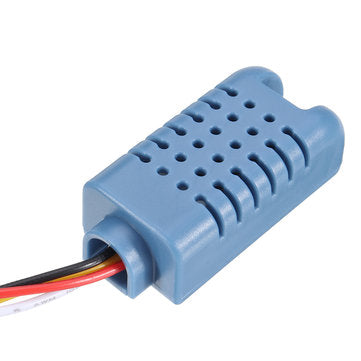

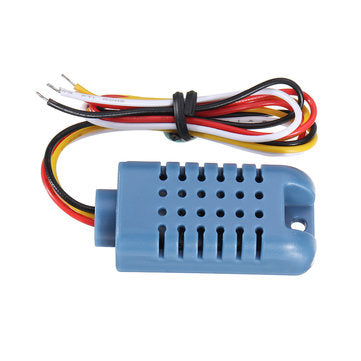

AM1011 Temperature and Humidity Sensor Humidity Sensitive Capacitor Module Analog Voltage Signal Out

Overview: ? AM1011 is a humidity sensitive capacitive temperature and humidity sensor. The sensor signal adopts analog voltage output mode. This module has high precision, high reliability, good consistency, and temperature compensation to ensure long-term stability, easy to use and low price. Features, especially suitable for enterprises with strict quality and cost requirements. ? Application: ? HVAC, humidifier, dehumidifier, communication, atmospheric environmental monitoring, industrial process control, agriculture, measuring instruments and other applications. ? Highlights: ? Low power consumption, small size, temperature compensation, single-chip calibration linear output, easy to use, low cost, fully interchangeable, long signal transmission distance, accurate calibration.

Feature:

Model: AM1011 Signal: 0-3V analog voltage signal Voltage: DC4.75-5.25V Humidity range: 5%-95%RH Temperature accuracy: +-0.5 ?￣C Humidity accuracy: +-5%RH (30-80% RH) Attenuation value: temperature: <0.1 ?￣C / year, humidity: <1% RH / year Response time: temperature: 5s, humidity: 10s 1 / e (63%) Temperature range: 0~+60?￣C Housing material: ABS plastic Weight: 13.5g Temperature output: 10KNTC
Package includes:

1 x Sensor
