ZHIQIAN

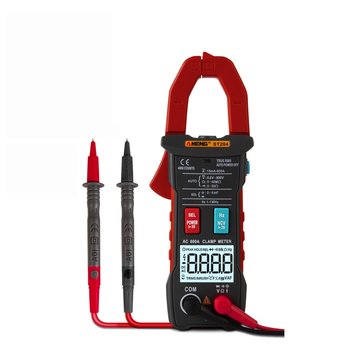

ANENG ST204 4000counts Full Intelligent Automatic Range Digital Current Multimete... (COLOR.: BLACK)

ANENG ST204 4000counts Full Intelligent Automatic Range Digital Current Multimete... (COLOR.: BLACK)

Regular price $685.00 USD
Regular price $1,141.67 USD Sale price $685.00 USD
Sale Sold out

SELECTED OPTION:
COLOR.: BLACK

Characteristics: ? 1. Display: liquid crystal display (LCD); 2. Maximum display: 4000 (3 3/4) bit automatic polarity display; 3. Measurement method: double integral A/D conversion; 4. Sampling rate: about 3 times per second; 5. Over range display: The highest position shows a??OLa??; 6. Low voltage display:symbol appears; 7. Working environment:(0 ~ 40)? ̄,relative humidity < 80%; 8. Power: AAA 1.5V battery (Batteries excluded) 9. Volume (size): 170??65??30mm (L??W??H); 10. Weight:about160g(Batteries excluded 1.5V battery); ? Functional Parameters: ? DC voltage DCV :yes AC voltage ACV :yes AC current ACA :yes Capacitance measurement :yes Resistor / On-Off Test :yes Diode measurement:yes (Diode forward voltage drop. Forward DC current is about 1mA, open circuit voltage is about 3V) Buzzer:yes (The buzzer sounds long and the resistance of the test is less than (50&pm;20) ??.? auto recognition (AUTO) Frequency F :yes NCV :yes Null line / Live line test :yes Full unit symbol :yes Backlight manual/Auto off :yes True RMS measurement :yes Flashlight lighting :yes HOLD :yes ? Technical Specifications: ? DC voltage (DCV):4V-40V-400V-600V &pm;(0.5%+3) AC voltage (ACV): 4V-40V-400V-600V &pm;(1%+3) AC current(ACA):0.1A-4A-40A-400A-600A &pm;(2.5%+8) Resistance: 4k??-40'k??-400k??-4M??-40M?? &pm;(0.5%+3) Frequency measurement: 4Hz-40Hz-400Hz-4kHz-40'kHz-400kHz-1MHz &pm;(0.1%+2) Capacitance measurement:4nF-40nF-400nF-4??F-40??F-400??F-4mF &pm;(2%+5) ? Package Includes: ? 1 x ANENG ST204 Clamp Meter 1 x? English User Manual 1 x Outer Packaging Box 1 x Pair of Test Leads 1 x Portable Storage Bag

Details Pictures:
