Anti-Thunder Hand Crank Earth Ground Resistance Tester Meter Testing Instrument ... (MODEL: ZC29B-2)

SELECTED OPTION:
MODEL: ZC29B-2

Feature:

1. Anti-thunder and high accuracy, easy to operate and convenient for carrying.
2. This ground resistance tester is suitable for testing resistance and is easy to use and practical.
3. The operation is simple, the dial is clear, the data is intuitive, and the reading is convenient.
4. High quality material, sturdy and durable, anti-friction, anti-corrosion and has long service life.
5. Hand-cranked power generation, with electric generator, suitable for field occasions, environmentally friendly and low carbon

Specification:

Condition: 100% Brand New
Item Type: Earth Resistance Tester
Material: Plastic, Metal

Model: ZC29B-1 Range: 0-1000?? Model: ZC29B-2 Range: 0-100??

Model	Measuring Range ??	Minimum Division Value???	Auxiliary Grounding Resistance?	Accuracy %
ZC29B-1	0-10	0.1	a????1000	3
	0-100	1	a????2000	3
	0-1000	10	a???5000	3
ZC29B-2	0-1	0.01	a???500	3
	0-10	0.1	a???1000	3
	0-100	1	a???2000	3

?

Use Temperature and Humidity: Temperature (-20-40)a??; Relative Humidity a???80%;
Test Temperature and Humidity: Temperature (23±5)a??; Relative Humidity a???75%;
Rated of the Handle: 150r/min
Tilt Effect: When the meter is tilted by 5?￣ in any direction, the change of the indication value does not exceed 50% of the accuracy;
External Magnetic Field Influence: When the external magnetic field strength is 0.4kA/m, the change amount of the instrument indication value does not exceed 100% of the accuracy;
Insulation Resistance: Not less than 30M?? under normal temperature and humidity

Package Includes:

1 x Earth Resistance Tester
1 x User Manual
1 x Set of?Accessories

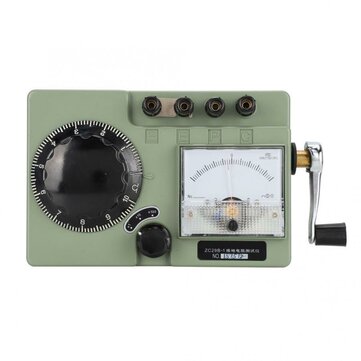

Details Pictures:
?
