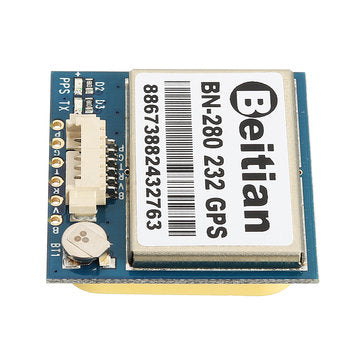

Beitian BN-280 RS232 GPS Module GPS+GLONASS Dual Mode With Antenna

Description:

GPS+GLONASS dual mode, RS-232 level output, 9600, 1HZ output, standard NMEA-0183 protocol output.

Parameter	Description
? ? Chip characteristics ? ?	Chip	U-blox 8
	Receiving mode	GPS,?GLONASS, Galileo, BeiDou, QZSS?and SBAS
	Frequency	GPSL1, GLONASS L1, BeiDou B1, SBAS L1, GalileoE1
	Channel	72?search channels
? Sensitivity	Track	-167dBm
	Recapture	-160dBm
	Cold start	-148dBm
	Hot start	-156dBm
? Precision	Horizontal accuracy	2.0 m CEP 2D RMS SBAS assist (open space)
	Speed accuracy	0.1m/s 95% (SA off)
	Time accuracy	1us
? Start Time	Cold start	26s, The actual open sky is generally 38s average, directly related to the environment.
	Warm start	25s
	Hot Start	1s
? ? Output Data	Baud rate	4800bps-115200bps,default 9600bps
	Single GNSS	1Hz-18Hz
	Standard GNSS	1Hz-10Hz, default 1Hz
? Work limit	Height	50,000m maximum
	Speed	515m/s maximum
	Gravity acceleration	4g maximum
Power consumption	Voltage	DC 3.0V-5.5V, typical:?5.0V
	Current	Normal 50mA@5.0V

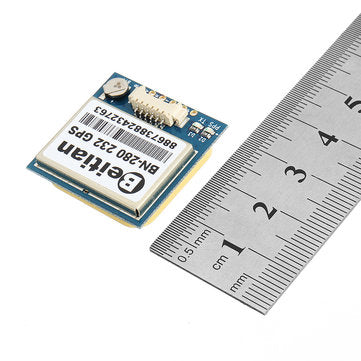

Physical parameter	Size	28mm*28mm*8mm
	Weight	11.8?grams
Surroundings	Operating temperature	-40 ?￣C ~ +85 ?￣C
	storage temperature	-40?￣C ~ +85?￣C
Connector	Connector	1.25mm pitch 6pin socket
Indicator light	TX light	Power-on blue light flashes to indicate that there is data output.
	PPS light	The light is not lit when it is not positioned. After 3D positioning, it starts to blink(red).

?

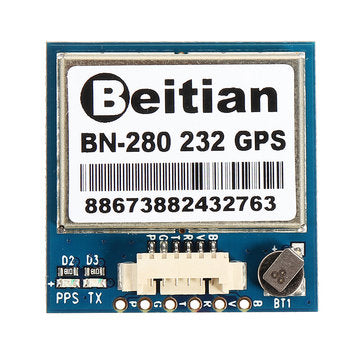

The pins of the module are:
?
1.PPS, there is a second pulse output after positioning, the pulse period is 1s, and the high level lasts for 100ms, which is used for system synchronization.
2. GND, ground.
3.TX, RS-232 data output of the module.
4. RX, RS-232 data input of the module.
5.VCC, 3.6-5.5V, recommended 5.0V.
6. BOOT, please hang out during normal work.

Package included:

1 x?Beitian BN-280 RS232 GPS Module

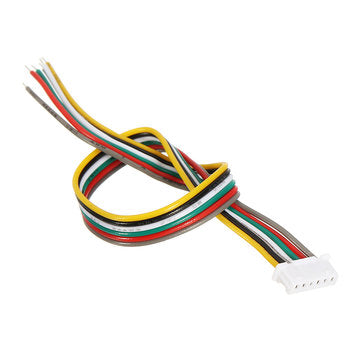

1 x cable
