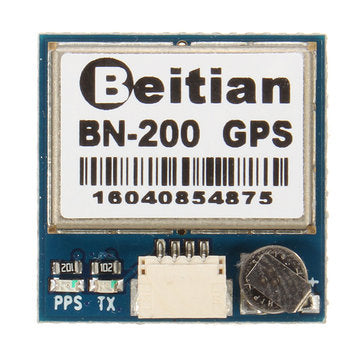

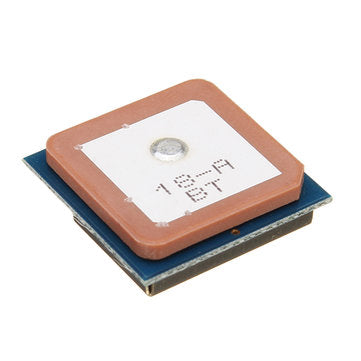

BN-200 Small Size M8030 Chipset GPS Module Antenna GPS GLONASS Dual GNSS Module With 4M FLASH 20mmx2

Feature:

Parameter	Specification
Electrical Characteristics	Chipset	M8030-KT
	Receiving?Format	GPS,GLONASS,Galileo,BeiDou,QZSS?and?SBAS
	Frequency	GPS L1, GLONASS L1, BeiDou B1,SBAS L1, Galileo E1
	Channels	72?Searching?Channel
Sensitivity	Tracking	-167dBm
	Reacquisition	-160dBm
	Cold start	-148dBm
	Hot start	-156dBm
Accuracy	Position Horizontal	2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
	Velocity	0.1m/sec 95% (SA off)
	Timing	1us synchronized to GPS time
Acquisition Time	Cold Start	26s
	Warm start	25s
	Hot start	1s
Data and Update Rate	Support?Rate	4800bps?to?921600bps,Default 9600bps
	Data Level	Default TTL level
	Data Protocol	NMEA-0183?or UBX, Default?NMEA-0183
	Single GNSS	1Hz-18Hz
	Concurrent GNSS	1Hz-10Hz,Default?1Hz
Operational Limits	Altitude	50,000m Max
	Velocity	515m/s Max
	Acceleration	Less than 4g
Power consumption	VCC	DC?Voltage?3.0V-5.5V,Typical:?5.0V
	Current	Capture?50mA/5.0V
Mechanical Specifications	Dimension	20mm*20mm*6mm
	Weight	5.2mm
	Connector	1.00mm spacing 4pins connector
Environment	Operating temp	-40 ?￣C ~ +85?￣C
	Storage?Temp	-40?￣C ~ +105?￣C
LED	built-in?LED	TX LED:blue.The data output, TX LED flashing
		PPS LED:red.PPS LED not bright when GPS not fixed,flashing when fixed

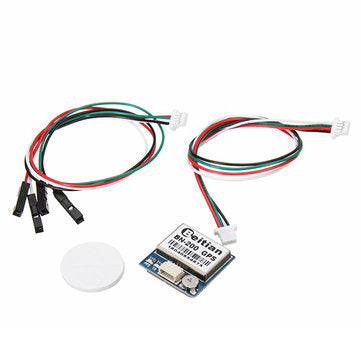

Package included:

1 x?BN-200 Small Size M8030 Chipset GPS Module



, , , , , , , , ,
